Details:

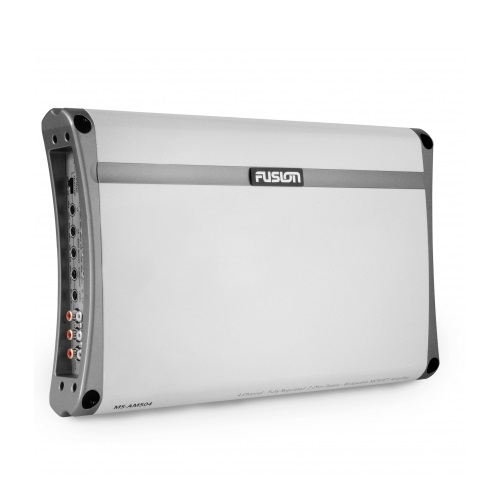

Fusion MS-AM504 500 Watt 4 Channel Amplifier

Model: 010-01500-00

Excellent to power the SW10 Sub-woofer or two pairs of speakers in parallel.
2-Ohm Stable
Boat Amps feature conformal coated boards, stainless steel end-caps, Fusion Intercooled, Semi-Conductor Technology (F.I.S.T.)
Fusion Regulated Amplifier Technology (F.R.A.T.)
Subsonic Filter
Variable Low and High Pass filters
Variable Bass Boost 0 - + 18dB
4 Gauge Power and Ground Connections
Nickel Plated Audio Input and Output RCA Connections
Nickel Plated RCA Output for multi-amp Installations

Specifications

Frequency response	5Hz - 38kHz +/- 3dB
Peak power	500 watts
Rated power	14.4 Volt power output specification 65 Watts RMS x 4 @ 4? 1% THD+N 100 Watts RMS x 4 @ 2? 1% THD+N 200 Watts RMS x 2 @ 4? Bridged 1% THD+N
Signal to noise	>95dB
Separation	>60dB
Input sensitivity	300mV - 8V
LP variable crossover	40Hz - 160Hz @ 18dB/octave
Hp variable crossover	40Hz - 600Hz @ 18dB/octave
variable bass boost	0 - + 18dB @ 45Hz
variable subsonic filter	20Hz - 55Hz @ 18dB/octave
Input impedance	20k?
Damping factor	>200
T.H.D.	0.05%
Fuse rating	2 x 25A
Dimensions	9.16" (W) x 14.64"(L) x 2.12(H)

What's in the Box:

Amplifier
owners manual
