Details: |
|

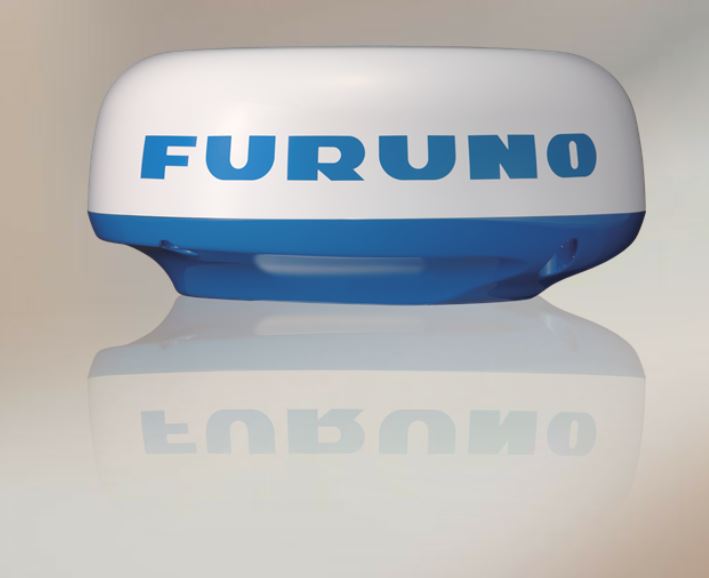

Furuno DRS4DL+ 19" Radome
| Antenna size |
19 inches |
| Band |
X-Band |
| Power usage |
12-24 VDC |
| Antenna type |
Radome |
| Beam width |
5.2 degrees |
| Power output |
4 kW |
Single wire Radar solution
The DRS4DL+ is a , 19" dome Radar Sensor for NavNet TZtouch and NavNet TZtouch2.
This 4kW Radar is presented in a compact, rugged 19" dome with a 5.2 degree
horizontal beamwidth antenna. Furuno's automatic, real-time digital signal
processing presents navigators with some of the clearest targets they'll ever
find from a Radar of this compact size. The DRS4DL+ utilizes a wired connection
with NavNet TZtouch and TZtouch2. In combination with the TZTL12F/15F, this
single-wire solution results in a very simple installation.
For NavNet TZtouch & TZtouch2
The DRS4DL+ spins at a fixed 24RPM, and has range scales from 1/8 nm to 36 nm.
The DRS4DL+ is designed to work with NavNet TZtouch and TZtouch2 systems. It is
not compatible with NavNet 3D.
Fast Target Tracking
Fast Target Tracking (TT) / ARPA on the DRS4DL+ manually or automatically
acquires and tracks 10 targets*. After selecting a target, it only takes a few
seconds for a speed and course vector to be displayed. With accurate tracking
information, estimation of other vessel's course and speed is made simple.
*heading sensor required
Packing List
- DRS4DL+-DOME 19" 4kW Radar Sensor (x1)
- 000-168-869-10 5A Fuse (x2)
- 000-167-232 Flat Washer M10 (x4)
- 000-167-233 Spring Washer M10 (x4)
- 000-162-883 Hex Bolt M10X25 (x4)
- IME-366-90Z Installation Manual (x1)
- E32-013-14Z Mounting Template (x1)
- MDC-363-70Z Environmental Data Sheet (x1)
- 001-376-480-00 Signal/Power Cable 15m
(x1)
|
|
Did you Know?
ALL products we sell are factory new and come with the full Manufacturers Warranty! |
|
|
|
| |
