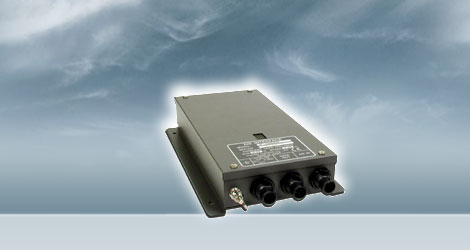

The IF1500AIS is an interface box that enables
connection of any AIS Transponder or receiver to the FR8XX2 Series radar. Note
that when connecting an FA150 to any FR8XX2 series display, the IF1500AIS is NOT
required! Once 38.4 KBPS AIS data is connected, and both heading and position
information are available at the display, the FR8XX2 will display AIS
information.
Along with the IF1500AIS, the following optional
cables are required to get heading, position and the IF1500AIS interfaced to the
FR8XX2 series display:
2 each 000-154-028 7 Pin cables – One for
position input to the FR8XX2 Radar display, and another one to connect the
IF1500 AIS to the FR8XX2 Radar display.
1 each 000-154-054 – 6 pin cable for connecting
heading data into the FR8XX2 Radar display.
Please refer to the detailed interconnect diagram
in the manuals / documents section of this page
