Details: |

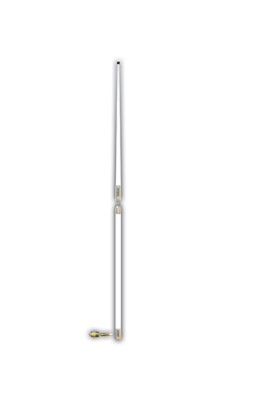

Digital Antenna 532-VW-S 16' White VHF Antenna Model: 532-VW-S
- Powerful brass radiators
- Soldered connections
- Power directing ferrite choke bead
- High gloss urethane finish
- 316 stainless steel ferrule
- 10dB gain
A favorite of marine professions, Digital Antenna's largest VHF antenna offer the power and durability to achieve maximum range and extended performance, even in the roughest seas. A powerful gain of 10dB and solid construction make Digital Antenna’s 16’ VHF antennas the ideal choice for critical communication onboard large yachts, commercial vessels and base stations. Customers and installers love the 500 GOLD Series’ easy installation connector system. The gold factory-attached mini-UHF female connector with PL-259 (UHF) adapter makes connecting to the radio easy, eliminating the need to solder connectors. All of our Digital Antennas are made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability. UPS shippable. Digitals Antennas 16' VHF antennas require a side support 3' to 4' from the base of the antenna. Specifications
Mount | Standard 1"—14 threaded base. | Connector | GOLD Factory-attached mini-UHF female with mini-UHF male to UHF male (PL259) adapter. | Cable | Includes 20’ exclusive low-loss, tinned braid, foil shielded, UV stable RG-8X marine cable | Radiation Pattern | Omni-Directional | Gain | 10 dBi | VSWR | <2.0:1 = 151.8-161.8 MHz (10 MHz) | Impedance | 50 ohms | Maximum power input | 200 watts | Exterior Finish | White, UV stable poly-urethane coating | Ferrule | 316 Stainless Steel | Wind Rating | 95 mph |
What's in the Box:- Antenna Top Section
- Antenna Bottom Section with 20' cable
- mini-UHF male to UHF male (PL259) adapter
|
|
