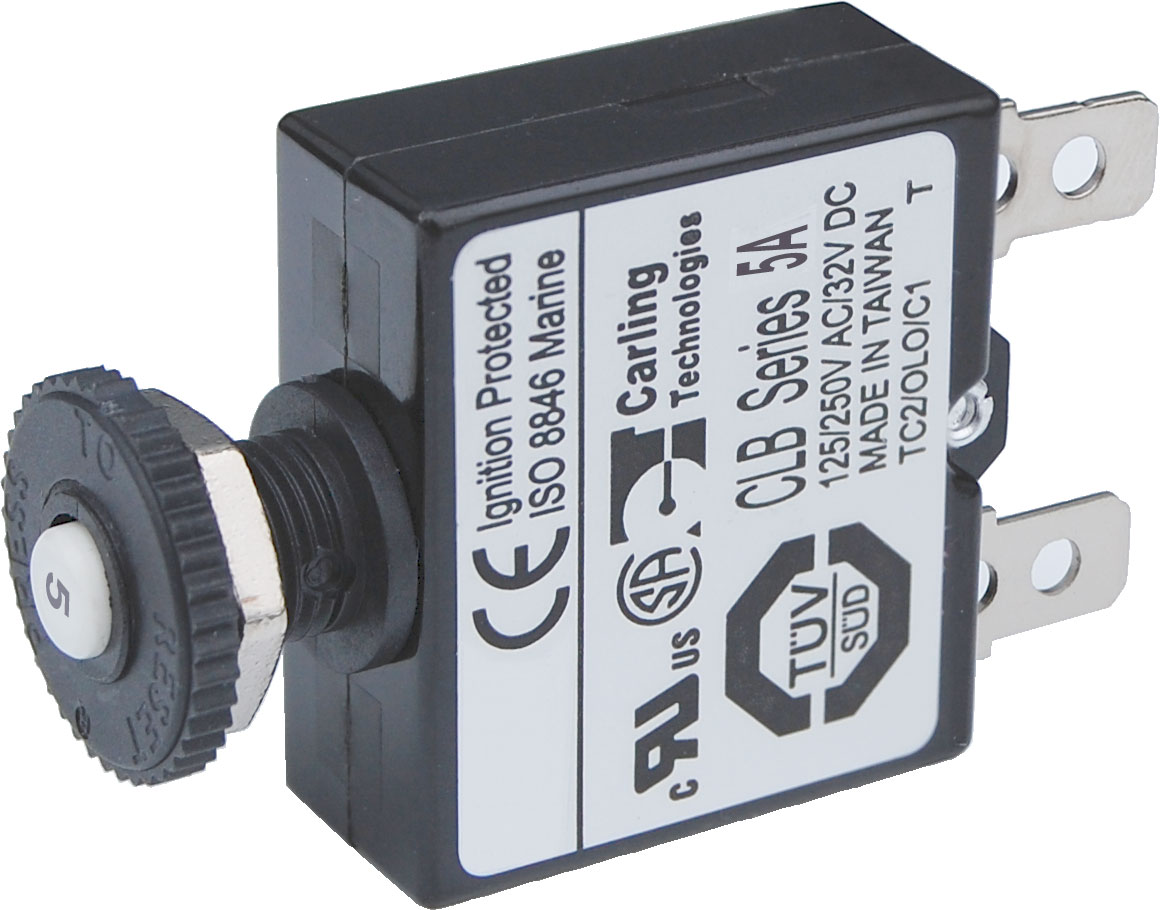

Blue Sea Push Button Reset Only Quick Connect Circuit Breaker - 5 Amps
Model: 7052-BSS
Branch circuit breakers (can also be used for 24-hour circuit protection)
Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
Compact design enables high density circuit protection configurations
Push-to-reset operation
"Trip Free" design cannot be held "ON" during fault current condition
Ignition protected - Safe for installation aboard gasoline powered boats
Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
Specifications
Amperage
5A
Maximum Voltage
32vDC
Mounting
Panel Mount 3/8-27 UNS
Circuit Breaker Type
Thermal trip, manual push-button reset only
Terminal Type
1/4 Male Quick Connect
Interrupt Capacity
3000A @ 14.7V 2500A @ 28V
Minimum Operating Temperature
-10° C
Maximum Operating Temperature
60° C
