The all new GlobalFix iPRO Emergency Position Indicating Radio Beacon (EPIRB)
is the next generation in marine safety electronics. The GlobalFix iPRO is a
breakthrough product that boasts a digital display and dual GPS technology.
GlobalFix iPRO sports a digital display that allows you to see all of the
beacon’s operational activities. The screen displays GPS LAT/LON, operating
instructions, usage tips, transmission bursts as well as battery power.
iPRO makes self-testing your beacon simple and easy to understand with the
digital display visually walking you through the self test step by step, no more
relying on listening to beeps and LEDs.
The GlobalFix iPRO is also the first EPIRB that offers Dual GPS Technology.
Interface your iPRO to your onboard GPS to ensure that your LAT/LON is stored
inside so the coordinates are transmitted in the first data burst. iPRO’s
internal GPS is optimized for cold starts and is tested and refined at ACR’s GPS
Simulation Center so that it will pin-point your exact location faster than
standard GPS enabled EPIRBs.
- GlobalFix iPRO offers the very latest in marine electronic life saving
technology:
- Highly visible LED strobe - Energy efficient
- High efficiency electronics - Performance you can count on
- Non-hazardous batteries - No shipping hassles
- Professional grade design - Engineered, tested and built for years of
abusive marine use
- Ergonomic, compact design; Smallest feature rich EPIRB available

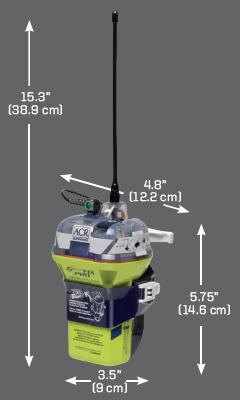

Size: 15.3 x 4.2 x 3.6 in (38.9 x 10.7 x 9.1 cm)
Weight: 1.32 lbs. (600 g)
External GPS interface requirements: In order to be compatible with the
GlobalFix™ iPRO, an external GPS receiver must provide location information
according to the following requirements:
- NMEA 0183, Version 1.5 or higher
- Baud rate: 4800
- Talker device identifier: GP (GPS Receiver)
- Sentence format: GGA (GPS Fix Data)
Specifications
- Part Number: 2846.0 Category I, Class 2
- Digital Display: 1” diagonal (3.81 cm) resolution
- Material: High impact UV resistant polymer
- Color: ACR-treuse (high visibility yellow)
- Waterproof: Tested to 10 min @ 33 ft. (10 m).
- Buoyant: Yes
- Deployment: Category I: Automatic hydrostatic release
- Battery: Non-Hazmat lithium battery, Class 2:
48 hrs. minimum @ -4° F (-20° C)
Operating: -4º to +131º F (-20º to +55º C)
Storage: -40º F to +158º F (-40º to +70º C)
Replacement: Battery replacement due no later than 6 years from date of
manufacture but 5 years from date of install or after emergency use
- Frequencies: 406 MHz with 121.5 MHz homing
- Strobe: White, 1 effective candela
Flash
rate: 30 ± min
- Accessories: HRU: P/N 9490, hydrostatic release unit
- Approvals and Standards: FCC, COSPAS-SARSAT, USCG, MED, IMO
(Pending);
Meets GMDSS, RTCM standards
- Shipping Carton Dimensions: 6.25 x 5.0 x 14.75” (15.88 x 12.7 x
37.47 cm)
- Units Per Carton: 1
- Warranty: 5 years
- Lead Free: Yes
|
