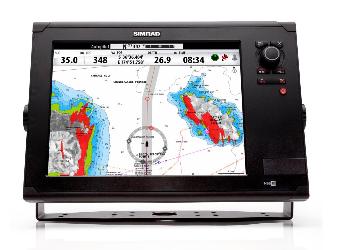

Simrad NSS12 Sport - A Touch Simpler
The all-new Simrad NSS Sport is the touchscreen multifunction display for
recreational boaters who require a reliable, high-quality, fully integrated,
navigation platform. Unlike other touchscreen devices, the NSS delivers Touch
Sensible control, inbuilt performance Echosounder (NSS7 & NSS8) and GPS, and
full network compatibility with all NS Series displays, devices and accessories.
Easy. Touch.
Simple menus and icons developed alongside our Touch Sensible technology have
ensured the NSS Sport delivers immediate access to every function in the
quickest and easiest manner possible.
Panning charts, marking waypoints, and building routes can now be done with a
simple touch on the screen, whilst ultra-fast zooming is performed with the
super-smooth rotary controller.
Complete Control
100% compatible with every Simrad Performance Module, and easily linked to all
of your electronics, the NSS Sport can be utilized as a complete command centre.
Crank up the tunes on your SonicHub, steer your autopilot, find more fish, and
even set mood lighting - all from your NSS Sport.
Extreme Ease Of Use
Simple menus and icons on the touchscreen guide you to the information you need,
and the keypad includes 'one-touch' buttons for immediate access to important
functions such as the autopilot. It's easy to use for everyone onboard.
Touch Sensible Technology
Developed specifically for the marine environment, Touch Sensible technology
is the combination of touchscreen, keypad, and super-smooth rotary controller.
This perfect blend allows the NSS Sport to deliver unrivalled performance of
every function with the simple touch of a finger in any sea state.
Powerfully Fast Charting
The NSS Sport is a fast and efficient chartplotter. Panning the charts, marking
waypoints, or building routes are easy with the touchscreen, whilst the smooth
rotary controller enables ultra-fast zooming.
Expandable
The NSS Sport is 100% compatible and networks effortlessly with every Simrad
Performance Module including the award-winning Broadband Radar, StructureScan and SonicHub. It can also be integrated with NSE and NSO
systems for the ultimate in flexibility.
Full Control And Integration
Not only is the NSS Sport an outstanding chartplotter and fish finder, it's a
complete command centre. Monitor your engine, steer your autopilot, turn on your
bait well or bilge pump, or even set mood lighting ? it's all a touch simpler
with the NSS Sport.
Bright
Unique LED backlighting technology allows the NSS Sport display to be bright,
clear, and highly visible in every conceivable condition. Added to this, the
technology also reduces power consumption and increases product life.
Built-in Broadband Sounder for NSS7 & NSS8:
Find more fish and improve your view with high definition echo clarity as
standard.Built-in GPS:
Integrated GPS antenna for incredible position accuracy.
Touch Sensible Technology
The perfect combination of touchscreen, keypad, and super-smooth rotary
controller.
Autopilot LEDs:
Obtain general steering confirmation at a glance. Surrounding the Rotary
controller are port and starboard LEDs that indicate course adjustments.
Micro SD Charts:
Switching charts in seconds has never been so simple. US models are pre-loaded
with detailed Insight Cartography. Models in other regions are pre-loaded with
Navionics Coastal or Silver charts.
Rotary Controller:
Perfectly intuitive for fine or coarse control of gain, zoom and menu, with push
to enter functionality.
IPX7 Waterproofing:
Elegant yet rugged, and totally waterproof.
Custom Screens:
Simply drag and drop pages to set up custom screens in seconds.
High-Speed
Connectivity:
Integrates easily via high-speed Ethernet, NMEA 2000, and SimNet.
DISPLAY
| Display Resolution |
1024 x 768 (H x W) |
| Display Type |
12 inch XGA Color TFT |
| Backlighting Levels |
1200 nits |
| Multilanguage Display |
Yes |
SONAR / SOUNDER
| Sonar Frequency |
83/200 kHz |
| Sonar Depth |
Max 1000 m \ 3300 ft |
TECHNICAL / ENVIRONMENTAL
| Housing |
Plastic housing; Die cast rear heatsink
|
| Waterproof Standard |
IPx7 |
POWER
| Power Supply |
12.0 VDC-24.0 VDC (9.0 - 32.0 VDC
Min-Max) vDC |
| Power Consumption |
26w or 2.0A @ 13VDC |
OTHER
| Languages |
English (UK), English (US), German,
French, Spanish, Italian, Portuguese, Croatian, Finnish, Icelandic,
Dutch,Norwegian, Polish, Swedish, Slovenian, Russian, Ukrainian,
Bulgarian |
| Operating Temperature |
-15 °C to +55°C (+5°F to +131°F)
|
| Other Features |
Weight - 3.78 (8.3lb)
*Echosounder - NB. Echosounder only applies to NSS7/NSS8
Ethernet - NSS7: 1 port, NSS8: 1 port, NSS12: 3 port
Interface (NMEA 2000) - Micro C (1)
Video Input: Composite Video x (multiplexed)
SD Card Slot: Micro SD (1)
Certificates of Conformity: CE (EN60945: 2002)/Ctick/CCS |
|
