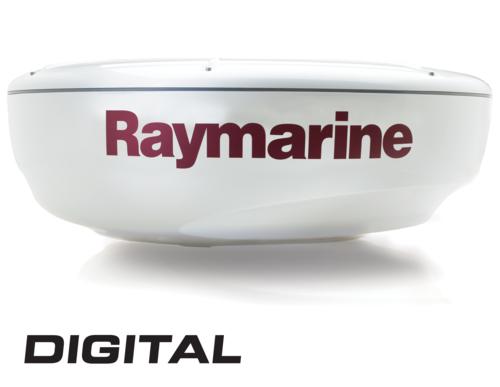

Antenna Type |
Patch Array |
|
Beam Width (nominal) |
3.9° horizontal, 25° vertical |
|
Polarization |
Horizontal |
|
Rotation Rate |
24 rpm (nominal) |
|
CE Approval |
Conforms to 1999/5/EC |
|
FCC Approval |
Conforms to 47CFR Part 2 and Part 80 |
|
Dimensions |
652 x 247 mm (25.67 x 9.7 in) |
|
Weight |
10 kg (22 lbs) |
|
Input Voltage |
12 - 24 V DC
(Supplied by connected display) |
|
Power Consumption |
40 W (20 W Standby) |
|
Waterproof |
IPX6 |
|
Temperature Range |
-10° to +55°C |
|
Humidity Limit |
up to 95% at 35°C |
|
Maximim operating wind speed |
100 kts. |
|
Maximum range Scale |
48 nm |
|
Range (nm) |
Pulse Length (ns) |
PRF (kHz) |
|
0.25 or less |
75 |
3 |
|
0.5 |
100 |
3 |
|
0.75 |
100 |
3 |
|
0.75 expanded |
150 |
3 |
|
1.5 |
250 |
3 |
|
3 |
350 |
2 |
|
3.00 expanded |
450 |
1.5 |
|
6.00 or greater |
1.0 µs |
740 Hz |
|
IF Frequenncy |
60 MHz (nominal) |
|
Receiver Characteristic |
Logarithmic |
|
Receiver Noise Figure |
Less than 5 dB (including Low Noise
Converter/Limiter & IF Receiver) |
|
Receiver Bandwidth |
12/3/0.7/0.5 MHz |
|
Transmitting Frequency |
9405 +/– 25 MHz |
|
Peak Power Output |
4.0 kW (nominal) |
|
Transmitter |
Solid-state modulator driving Magnetron |
|
Standby Mode |
magnetron heater and control left on, all other
services off |
|
Duplexer |
Circulator |
