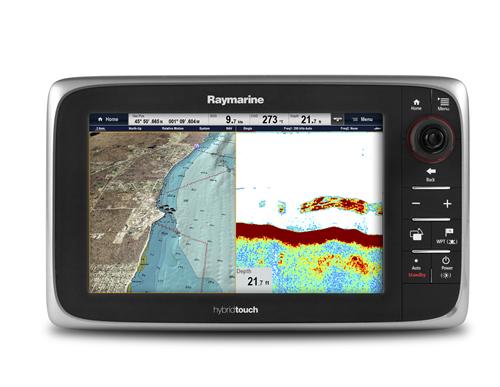

Raymarine e97 9" Multifunction Display with Built in HD Digital Sonar
and U.S. Coastal Charts
The all-new Raymarine e-Series 9" e97 multifunction display (MFD) is designed
to deliver no-compromise performance, incredible networking capability, and a
superior user experience. Ideal for sail and power boats of all types. The e97
has an ultra-bright, sunlight viewable LCD screen and LED backlighting for
maximum power savings. e-Series MFDs all feature Raymarine’s HybridTouch user
interface offering full touch screen or button-based control.
The Raymarine e97 is available with a convenient built-in HD Digital Sounder,
capable of imaging fish and bottom structure at depths to 3,000 feet. The e97
MFD also includes a standard built-in high sensitivity GPS receiver. The e97 has
dual chart reader slots for Navionics charts on microSD cards.
The Raymarine e97 is a networking powerhouse with built-in Wi-Fi and
Bluetooth Wireless Networking. Use the Raymarine e97's Wi-Fi to stream its video
display to your Apple iPhone or iPad. Synchronize waypoints and routes
wirelessly to the Navionics Lakes and Marine app. Control your e97 display right
from the helm with the optional RCU-3 Bluetooth Remote Control (sold
separately.) The e97 can also control your smart phone or MP3 player’s music
playback using Bluetooth control right from the MFD.
The Raymarine e97 also offer robust wired networking including SeaTalkhs,
SeaTalkng, NMEA2000, NMEA 0183 and one composite video input. The e97 offers
expanded video capability with an additional composite input, and high
resolution video output using the optional e-Series Video Accessory Cable (sold
separately). Network up to 6 displays together and match them with your choice
of Raymarine HD Color radar scanners, sounder modules, thermal imaging cameras,
SIRIUS weather receivers, AIS transceivers, marine cameras and more.
The Raymarine e97 includes a rubberized protective sun cover, flush mounting
kit, power/data/video cable, installation guide and a
multi-language handbook on CD-ROM.
Raymarine e97 Features
- Includes U.S. Coastal Charts
- 9.0” sunlight viewable LCD display with LED backlighting.
- HybridTouch User interface with LightHouse offers fast, easy control
using touchscreen or keypad/Unicontroller.
- Built-in high-sensitivity GPS receiver.
- Available with or without built-in HD Digital sonar.
- Available with our without Navionics ready-to-navigate charts on microSD
card.
- Wi-Fi video streaming and waypoint synchronization with iPhone and iPad
mobile devices.
- Bluetooth connectivity for optional RCU-3 remote control and multimedia
control.
- Dual core main processor and dedicated graphics co-processor for amazing
speed and performance.
- Expandable networking up to 6 displays using SeaTalkhs networking.
- Mix and match any combination of C-Series or E-Series displays.
- Composite video input for marine camera, thermal imager or entertainment
source.
- Optional second composite input and video output using accessory video
cable (sold separately, e95, e97, e125 and e127 only.)
- Works with Raymarine digital radar scanners, digital sounder modules,
thermal night vision systems, SIRIUS weather receivers, AIS receivers,
instruments, autopilots and more.
Raymarine
e97 Multifunction Display Specifications
|
Physical |
| |
Width |
11.4 inches
(290mm) |
|
| |
Height |
6.8 inches
(173mm) |
Not
including mounting bracket |
|
Electronic Charts |
| |
Chart card
format |
micro-SD |
|
| |
Compatible
Charts |
Navionics
Ready-to-Navigate |
Silver,
Gold, Gold+, Platinum, Platinum+, Fish 'N Chip, Hotmaps |
|
Conformance |
| |
NMEA |
NMEA2000
certification |
|
| |
Wireless |
WiFi
Alliance certification |
|
| |
Europe |
2004/108/EC |
|
| |
Australia
and New Zealand |
C-Tick,
Compliance Level 2 |
|
|
Physical |
| |
Depth |
2.56 inches
(65mm) |
Not
including cables |
| |
Depth |
5.90 inches
(150mm) |
Including
cables |
| |
Weight |
7.8 pounds
(3.540 kg) |
|
|
Power |
| |
Nominal
Supply Voltage |
12/24 V dc |
|
| |
Operating
Voltage Range |
10.8 to
31.2 V dc |
|
| |
Fuse/Breakers |
7A.
Standard 20mm glass fuse. |
In-line
fuse fitted within power cable. |
| |
Consumption |
16 W |
At full
display brightness |
| |
LEN |
1 |
Refer to
SeaTalk NG Reference Manual |
|
Installation |
| |
Flush
mounting hardware |
Included |
|
| |
Trunion
mounting bracket |
Not Included |
|
|
Environmental |
| |
Operating
temperature |
-25 ºC to
+55 ºC (-13 ºF to 131 ºF) |
|
| |
Storage
temperature |
-30 ºC to
+70 ºC (-22 ºF to 158 ºF) |
|
| |
Relative
humidity |
Maximum 75% |
|
| |
Waterproof
rating |
IPX6 |
|
|
Display |
| |
Size |
9-inches
(diagonally) |
|
| |
Aspect
ration |
16 x 9
Widescreen |
|
| |
Type |
TFT with
LED Backlighting |
|
| |
Color depth |
18-bit |
|
| |
Resolution |
800 x 480
pixels (WVGA) |
|
| |
Brightness |
Ultra-sunlight viewable |
|
| |
Viewing
angle |
Left/Right:
80/60 degrees, Top/Bottom: 70 degrees |
|
|
Data (Wired) |
| |
NMEA0183 |
2 Ports |
|
| |
NMEA0183
Port 1 |
Input only |
4800 / 9600
/ 38400 baud |
| |
NMEA0183
Port 2 |
Input and
output |
4800 / 9600
baud |
| |
SeaTalk HS |
1 x SeaTalk
HS port |
100 Mbits/s.
Micronet connection. |
| |
SeaTalk NG |
1 X SeaTalk
NG connection |
Adaptable
to NMEA2000 Devicenet. |
|
Data (Wireless) |
| |
WiFi |
802.11 b/g |
|
| |
Bluetooth |
AVCRP 2.1+
EDR power class 1.5 |
|
|
Internal GPS |
| |
Included |
Yes |
|
| |
Satellite
Based Aiding System (SBAS) |
WAAS +
EGNOS |
|
| |
Operating
Frequency |
1575.43 MHz |
|
| |
Signal
Acquisition |
Automatic |
|
| |
Almanac
Update |
Automatic |
|
| |
Geodetic
Datum |
WGS-84 |
Alternatives selectable through e7 interface |
| |
Update rate |
1 second |
|
| |
Antenna |
Patch |
|
| |
Accuracy |
Without
SBAS |
<=15 meters
95% of the time |
| |
Accuracy |
With SBAS (WAAS
/EGNOS) |
<=5 meters
95% of the time |
|
Video Input |
| |
Number of
inputs |
1 |
|
| |
Signal type |
Composite |
|
| |
Format |
PAL, NTSC
or SECAM |
|
| |
Connector
type |
BNC |
|
|
Electronic Charts |
| |
Chart card
slots |
2 |
|
|
Internal Sonar |
| |
Power
Output |
600 Watts (RMS) |
Transducer
dependent |
| |
Operating
Frequencies |
50 kHz, 200
kHz, 83 kHz |
83 kHz when
used with Minn Kota US2 Transducer |
| |
Depth Range |
Up to 3,000
feet |
Transducer
dependent |
|
