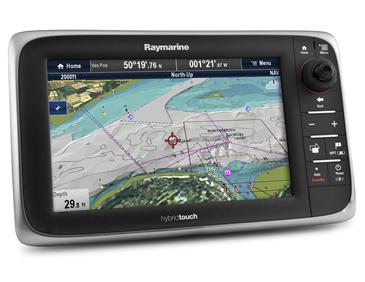

Raymarine e95 9" Multifunction Display with no built in charts
The all-new Raymarine e-Series 9" multifunction display (MFD) is designed to deliver
no-compromise performance, incredible networking capability, and a superior user
experience. Ideal for sail and power boats of all types. The e95 has an
ultra-bright, sunlight viewable LCD screen and LED backlighting for maximum
power savings. e-Series MFDs all feature Raymarine’s HybridTouch user interface
offering full touch screen or button-based control.
The Raymarine e95 MFD includes a standard built-in high sensitivity GPS receiver. The e95
has dual chart reader slots for Navionics charts on microSD cards.
The Raymarine e95 is a networking powerhouse with built-in Wi-Fi and Bluetooth Wireless
Networking. Use the Raymarine e95's Wi-Fi to stream its video display to your Apple iPhone
or iPad. Synchronize waypoints and routes wirelessly to the Navionics Lakes and
Marine app. Control your e95 display right from the helm with the optional RCU-3
Bluetooth Remote Control (sold separately.) The e95 can also control your smart
phone or MP3 player’s music playback using Bluetooth control right from the MFD.
The Raymarine e95 also offer robust wired networking including SeaTalkhs, SeaTalkng,
NMEA2000, NMEA 0183 and one composite video input. The e95 offers expanded video
capability with an additional composite input, and high resolution video output
using the optional e-Series Video Accessory Cable (sold separately). Network up
to 6 displays together and match them with your choice of Raymarine HD Color
radar scanners, sounder modules, thermal imaging cameras, SIRIUS weather
receivers, AIS transceivers, marine cameras and more.
The Raymarine e95 includes a rubberized protective sun cover, flush mounting
kit, power/data/video cable, installation guide and a
multi-language handbook on CD-ROM.
Raymarine e95 Features
- 9.0” sunlight viewable LCD display with LED backlighting.
- HybridTouch User interface with LightHouse offers fast, easy control
using touchscreen or keypad/Unicontroller.
- Built-in high-sensitivity GPS receiver.
- Available with our without Navionics ready-to-navigate charts on microSD
card.
- Wi-Fi video streaming and waypoint synchronization with iPhone and iPad
mobile devices.
- Bluetooth connectivity for optional RCU-3 remote control and multimedia
control.
- Dual core main processor and dedicated graphics co-processor for amazing
speed and performance.
- Expandable networking up to 6 displays using SeaTalkhs networking.
- Mix and match any combination of C-Series or E-Series displays.
- Composite video input for marine camera, thermal imager or entertainment
source.
- Optional second composite input and video output using accessory video
cable (sold separately, e95, e97, e125 and e127 only.)
- Works with Raymarine digital radar scanners, thermal night vision
systems, SIRIUS weather receivers, AIS receivers, instruments, autopilots
and more.
Raymarine
e95 Multifunction Display Specifications
|
Physical |
| |
Width |
11.4 inches (290mm) |
|
| |
Height |
6.8 inches (173mm) |
Not including mounting bracket |
|
Display |
| |
Brightness |
Ultra-sunlight viewable |
|
| |
Viewing angle |
Left/Right: 80/60 degrees,
Top/Bottom: 70 degrees |
|
|
Data (Wired) |
| |
NMEA0183 |
2 Ports |
|
| |
NMEA0183 Port 1 |
Input only |
4800 / 9600 / 38400 baud |
| |
NMEA0183 Port 2 |
Input and output |
4800 / 9600 baud |
| |
SeaTalk HS |
1 x SeaTalk HS port |
100 Mbits/s. Micronet
connection. |
| |
SeaTalk NG |
1 X SeaTalk NG connection |
Adaptable to NMEA2000 Devicenet. |
|
Data (Wireless) |
| |
WiFi |
802.11 b/g |
|
| |
Bluetooth |
AVCRP 2.1+ EDR power class 1.5 |
|
|
Internal GPS |
| |
Included |
Yes |
|
| |
Satellite Based Aiding System (SBAS) |
WAAS + EGNOS |
|
| |
Operating Frequency |
1575.43 MHz |
|
| |
Signal Acquisition |
Automatic |
|
| |
Almanac Update |
Automatic |
|
| |
Geodetic Datum |
WGS-84 |
Alternatives selectable through
e7 interface |
| |
Update rate |
1 second |
|
| |
Antenna |
Patch |
|
| |
Accuracy |
Without SBAS |
<=15 meters 95% of the time |
| |
Accuracy |
With SBAS (WAAS /EGNOS) |
<=5 meters 95% of the time |
|
Video Input |
| |
Number of inputs |
1 |
|
| |
Signal type |
Composite |
|
| |
Format |
PAL, NTSC or SECAM |
|
| |
Connector type |
BNC |
|
|
Electronic Charts |
| |
Chart card slots |
2 |
|
| |
Chart card format |
micro-SD |
|
| |
Compatible Charts |
Navionics Ready-to-Navigate |
Silver, Gold, Gold+, Platinum,
Platinum+, Fish 'N Chip, Hotmaps |
|
Conformance |
| |
NMEA |
NMEA2000 certification |
|
| |
Wireless |
WiFi Alliance certification |
|
| |
Europe |
2004/108/EC |
|
| |
Australia and New Zealand |
C-Tick, Compliance Level 2 |
|
|
Physical |
| |
Depth |
2.56 inches (65mm) |
Not including cables |
| |
Depth |
5.90 inches (150mm) |
Including cables |
| |
Weight |
7.8 pounds (3.540 kg) |
|
|
Power |
| |
Nominal Supply Voltage |
12/24 V dc |
|
| |
Operating Voltage Range |
10.8 to 31.2 V dc |
|
| |
Fuse/Breakers |
7A. Standard 20mm glass fuse. |
In-line fuse fitted within
power cable. |
| |
Consumption |
16 W |
At full display brightness |
| |
LEN |
1 |
Refer to SeaTalk NG Reference
Manual |
|
Installation |
| |
Flush mounting hardware |
Included |
|
| |
Trunion mounting bracket |
Not Included |
|
|
Environmental |
| |
Operating temperature |
-25 ºC to +55 ºC (-13 ºF to 131
ºF) |
|
| |
Storage temperature |
-30 ºC to +70 ºC (-22 ºF to 158
ºF) |
|
| |
Relative humidity |
Maximum 75% |
|
| |
Waterproof rating |
IPX6 |
|
|
Display |
| |
Size |
9-inches (diagonally) |
|
| |
Aspect ration |
16 x 9 Widescreen |
|
| |
Type |
TFT with LED Backlighting |
|
| |
Color depth |
18-bit |
|
| |
Resolution |
800 x 480 pixels (WVGA) |
|
|
