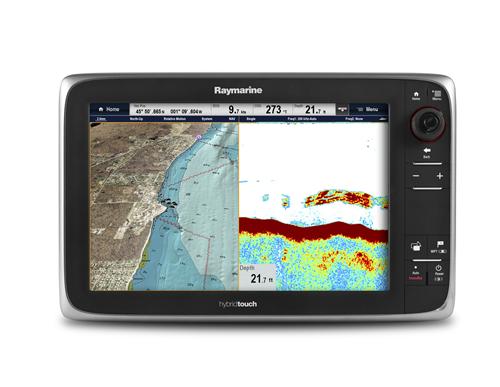

Raymarine e127 12.1" Multifunction HybridTouch Display with HD
Digital Sonar and Inland U.S. Charts
The all-new e-Series 12.1" e127 multifunction display (MFD) is designed to
deliver no-compromise performance, incredible networking capability, and a
superior user experience. Ideal for sail and power boats of all types. The e127
has an ultra-bright, sunlight viewable LCD screen and LED backlighting for
maximum power savings. e-Series MFDs all feature Raymarine’s HybridTouch user
interface offering full touch screen or button-based control.
The e127 is available with a convenient built-in HD Digital Sounder, capable
of imaging fish and bottom structure at depths to 3,000 feet. The e127 MFD also
includes a standard built-in high sensitivity GPS receiver. The e127 has dual
chart reader slots for Navionics charts on microSD cards.
The e127 is a networking powerhouse with built-in Wi-Fi and Bluetooth
Wireless Networking. Use the e127's Wi-Fi to stream its video display to your
Apple iPhone or iPad. Synchronize waypoints and routes wirelessly to the
Navionics Lakes and Marine app. Control your e127 display right from the helm
with the optional RCU-3 Bluetooth Remote Control (sold separately.) The e127 can
also control your smart phone or MP3 player’s music playback using Bluetooth
control right from the MFD.
The e127 also offer robust wired networking including SeaTalkhs, SeaTalkng,
NMEA2000, NMEA 0183 and one composite video input. The e127 offers expanded
video capability with an additional composite input, and high resolution video
output using the optional e-Series Video Accessory Cable (sold separately).
Network up to 6 displays together and match them with your choice of Raymarine
HD Color radar scanners, sounder modules, thermal imaging cameras, SIRIUS
weather receivers, AIS transceivers, marine cameras and more.
The Raymarine e127 includes a rubberized protective sun cover, flush mounting
kit, power/data/video cable, installation guide and a multi-language handbook on
CD-ROM.
Raymarine e127 Features
- Includes Inland U.S. Charts
- 12.1” sunlight viewable LCD display with LED backlighting.
- HybridTouch User interface with LightHouse offers fast, easy control
using touchscreen or keypad/Unicontroller.
- Built-in high-sensitivity GPS receiver.
- Available with our without Navionics ready-to-navigate charts on microSD
card.
- Wi-Fi video streaming and waypoint synchronization with iPhone and iPad
mobile devices.
- Bluetooth connectivity for optional RCU-3 remote control and multimedia
control.
- Dual core main processor and dedicated graphics co-processor for amazing
speed and performance.
- Expandable networking up to 6 displays using SeaTalkhs networking.
- Mix and match any combination of C-Series or E-Series displays.
- Composite video input for marine camera, thermal imager or entertainment
source.
- Optional second composite input and video output using accessory video
cable (sold separately, e95, e97, e125 and e127 only.)
- Works with Raymarine digital radar scanners, thermal night vision
systems, SIRIUS weather receivers, AIS receivers, instruments, autopilots
and more.
Raymarine e127 Multifunction Display Specifications
|
Physical |
| |
Width |
13.9 inches
(354mm) |
|
| |
Height |
8.7 inches
(221mm) |
Not
including mounting bracket |
|
Display |
| |
Resolution |
1280 x 800
pixels (WVGA) |
|
| |
Brightness |
Ultra-sunlight viewable |
|
| |
Viewing
angle |
Left/Right:
80/60 degrees, Top/Bottom: 70 degrees |
|
|
Data (Wired) |
| |
NMEA0183 |
2 Ports |
|
| |
NMEA0183
Port 1 |
Input only |
4800 / 9600
/ 38400 baud |
| |
NMEA0183
Port 2 |
Input and
output |
4800 / 9600
baud |
| |
SeaTalk HS |
1 x SeaTalk
HS port |
100 Mbits/s.
Micronet connection. |
| |
SeaTalk NG |
1 X SeaTalk
NG connection |
Adaptable
to NMEA2000 Devicenet. |
|
Data (Wireless) |
| |
WiFi |
802.11 b/g |
|
| |
Bluetooth |
AVCRP 2.1+
EDR power class 1.5 |
|
|
Internal GPS |
| |
Included |
Yes |
|
| |
Satellite
Based Aiding System (SBAS) |
WAAS +
EGNOS |
|
| |
Operating
Frequency |
1575.43 MHz |
|
| |
Signal
Acquisition |
Automatic |
|
| |
Almanac
Update |
Automatic |
|
| |
Geodetic
Datum |
WGS-84 |
Alternatives selectable through e7 interface |
| |
Update rate |
1 second |
|
| |
Antenna |
Patch |
|
| |
Accuracy |
Without
SBAS |
<=15 meters
95% of the time |
| |
Accuracy |
With SBAS (WAAS
/EGNOS) |
<=5 meters
95% of the time |
|
Video Input |
| |
Number of
inputs |
1 |
|
| |
Signal type |
Composite |
|
| |
Format |
PAL, NTSC
or SECAM |
|
| |
Connector
type |
BNC |
|
|
Electronic Charts |
| |
Chart card
slots |
2 |
|
| |
Chart card
format |
micro-SD |
|
| |
Compatible
Charts |
Navionics
Ready-to-Navigate |
Silver,
Gold, Gold+, Platinum, Platinum+, Fish 'N Chip, Hotmaps |
|
Conformance |
| |
NMEA |
NMEA2000
certification |
|
| |
Wireless |
WiFi
Alliance certification |
|
| |
Europe |
2004/108/EC |
|
| |
Australia
and New Zealand |
C-Tick,
Compliance Level 2 |
|
|
Physical |
| |
Depth |
2.56 inches
(65mm) |
Not
including cables |
| |
Depth |
5.90 inches
(150mm) |
Including
cables |
| |
Weight |
10.9 pounds
(4.955 kg) |
|
|
Power |
| |
Nominal
Supply Voltage |
12/24 V dc |
|
| |
Operating
Voltage Range |
10.8 to
31.2 V dc |
|
| |
Fuse/Breakers |
7A.
Standard 20mm glass fuse. |
In-line
fuse fitted within power cable. |
| |
Consumption |
16 W |
At full
display brightness |
| |
LEN |
1 |
Refer to
SeaTalk NG Reference Manual |
|
Installation |
| |
Flush
mounting hardware |
Included |
|
| |
Trunion
mounting bracket |
Not Included |
|
|
Environmental |
| |
Operating
temperature |
-25 ºC to
+55 ºC (-13 ºF to 131 ºF) |
|
| |
Storage
temperature |
-30 ºC to
+70 ºC (-22 ºF to 158 ºF) |
|
| |
Relative
humidity |
Maximum 75% |
|
| |
Waterproof
rating |
IPX6 |
|
|
Display |
| |
Size |
12.1-inches
(diagonally) |
|
| |
Aspect
ration |
16 x 9
Widescreen |
|
| |
Type |
TFT with
LED Backlighting |
|
| |
Color depth |
18-bit |
|
|
Internal Sonar |
| |
Power
Output |
600 Watts (RMS) |
Transducer
dependent |
| |
Operating
Frequencies |
50 kHz, 200
kHz, 83 kHz |
83 kHz when
used with Minn Kota US2 Transducer |
| |
Depth Range |
Up to 3,000
feet |
Transducer
dependent |
|
