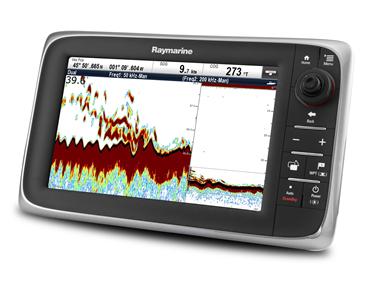

Raymarine c97 9" Multifunction Display with HD Digital Sonar and with
Inland U.S. Charts
The all-new c-Series 9" c97 multifunction display (MFD) is designed to
deliver no-compromise performance, incredible networking capability, and a
superior user experience. Ideal for sail and power boats of all types. The c97
has a sunlight viewable LCD screen and LED backlighting for maximum power
savings.
The Raymarine c97 is available with a convenient built-in HD Digital Sounder,
capable of imaging fish and bottom structure at depths to 3,000 feet. The c97
MFD also includes a standard built-in high sensitivity GPS receiver and also has
dual chart reader slots for Navionics charts on microSD cards.
The c97 is a networking powerhouse with built-in Wi-Fi and Bluetooth Wireless
Networking. Use the c97's Wi-Fi to stream its video display to your Apple iPhone
or iPad. Synchronize waypoints and routes wirelessly to the Navionics Lakes and
Marine app. Control your c97 display right from the helm with the optional RCU-3
Bluetooth Remote Control (sold separately.) The c97 can also control your smart
phone or MP3 player’s music playback using Bluetooth control right from the MFD.
The c97 also offer robust wired networking including SeaTalkhs, SeaTalkng,
NMEA2000, NMEA 0183 and one composite video input. Network up to 6 displays
together and match them with your choice of Raymarine HD Color radar scanners,
sounder modules, thermal imaging cameras, SIRIUS weather receivers, AIS
transceivers, marine cameras and more.
The Raymarine c97 includes a rubberized protective sun cover, flush mounting
kit, power/data/video cable, installation guide and a
multi-language handbook on CD-ROM.
Raymarine c97 Features
- Includes Inland U.S. Charts
- 9.0” sunlight viewable LCD display with LED backlighting.
- LightHouse User interface offers fast, easy control using the keypad/Unicontroller.
- Built-in high-sensitivity GPS receiver.
- Available with or without built-in HD Digital sonar.
- Available with our without Navionics ready-to-navigate charts on microSD
card.
- Wi-Fi video streaming and waypoint synchronization with iPhone and iPad
mobile devices.
- Bluetooth connectivity for optional RCU-3 remote control and multimedia
control.
- Dual core main processor and dedicated graphics co-processor for amazing
speed and performance.
- Expandable networking up to 6 displays using SeaTalkhs networking.
- Mix and match any combination of C-Series or E-Series displays.
- Composite video input for marine camera, thermal imager or entertainment
source.
- Works with Raymarine digital radar scanners, digital sounder modules,
thermal night vision systems, SIRIUS weather receivers, AIS receivers,
instruments, autopilots and more.
Raymarine c97 Multifunction Display Specifications
|
Physical |
| |
Width |
11.4 inches
(290mm) |
|
| |
Height |
6.8 inches
(173mm) |
Not
including mounting bracket |
|
Display |
| |
Resolution |
800 x 480
pixels (WVGA) |
|
| |
Brightness |
Ultra-sunlight viewable |
|
| |
Viewing
angle |
Left/Right:
80/60 degrees, Top/Bottom: 70 degrees |
|
|
Data (Wired) |
| |
NMEA0183 |
2 Ports |
|
| |
NMEA0183
Port 1 |
Input only |
4800 / 9600
/ 38400 baud |
| |
NMEA0183
Port 2 |
Input and
output |
4800 / 9600
baud |
| |
SeaTalk HS |
1 x SeaTalk
HS port |
100 Mbits/s.
Micronet connection. |
| |
SeaTalk NG |
1 X SeaTalk
NG connection |
Adaptable
to NMEA2000 Devicenet. |
|
Data (Wireless) |
| |
WiFi |
802.11 b/g |
|
| |
Bluetooth |
AVCRP 2.1+
EDR power class 1.5 |
|
|
Internal GPS |
| |
Included |
Yes |
|
| |
Satellite
Based Aiding System (SBAS) |
WAAS +
EGNOS |
|
| |
Operating
Frequency |
1575.43 MHz |
|
| |
Signal
Acquisition |
Automatic |
|
| |
Almanac
Update |
Automatic |
|
| |
Geodetic
Datum |
WGS-84 |
Alternatives selectable through e7 interface |
| |
Update rate |
1 second |
|
| |
Antenna |
Patch |
|
| |
Accuracy |
Without
SBAS |
<=15 meters
95% of the time |
| |
Accuracy |
With SBAS (WAAS
/EGNOS) |
<=5 meters
95% of the time |
|
Video Input |
| |
Number of
inputs |
1 |
|
| |
Signal type |
Composite |
|
| |
Format |
PAL, NTSC
or SECAM |
|
| |
Connector
type |
BNC |
|
|
Electronic Charts |
| |
Chart card
slots |
2 |
|
|
Internal Sonar |
| |
Power
Output |
600 Watts (RMS) |
Transducer
dependent |
| |
Operating
Frequencies |
50 kHz, 200
kHz, 83 kHz |
83 kHz when
used with Minn Kota US2 Transducer |
| |
Depth Range |
Up to 3,000
feet |
Transducer
dependent |
|
Electronic Charts |
| |
Chart card
format |
micro-SD |
|
| |
Compatible
Charts |
Navionics
Ready-to-Navigate |
Silver,
Gold, Gold+, Platinum, Platinum+, Fish 'N Chip, Hotmaps |
|
Conformance |
| |
NMEA |
NMEA2000
certification |
|
| |
Wireless |
WiFi
Alliance certification |
|
| |
Europe |
2004/108/EC |
|
| |
Australia
and New Zealand |
C-Tick,
Compliance Level 2 |
|
|
Physical |
| |
Depth |
2.56 inches
(65mm) |
Not
including cables |
| |
Depth |
5.90 inches
(150mm) |
Including
cables |
| |
Weight |
7.8 pounds
(3.540 kg) |
|
|
Power |
| |
Nominal
Supply Voltage |
12/24 V dc |
|
| |
Operating
Voltage Range |
10.8 to
31.2 V dc |
|
| |
Fuse/Breakers |
7A.
Standard 20mm glass fuse. |
In-line
fuse fitted within power cable. |
| |
Consumption |
16 W |
At full
display brightness |
| |
LEN |
1 |
Refer to
SeaTalk NG Reference Manual |
|
Installation |
| |
Flush
mounting hardware |
Included |
|
| |
Trunion
mounting bracket |
Not Included |
|
|
Environmental |
| |
Operating
temperature |
-25 ºC to
+55 ºC (-13 ºF to 131 ºF) |
|
| |
Storage
temperature |
-30 ºC to
+70 ºC (-22 ºF to 158 ºF) |
|
| |
Relative
humidity |
Maximum 75% |
|
| |
Waterproof
rating |
IPX6 |
|
|
Display |
| |
Size |
9-inches
(diagonally) |
|
| |
Aspect
ration |
16 x 9
Widescreen |
|
| |
Type |
TFT with
LED Backlighting |
|
| |
Color depth |
18-bit |
|
|
