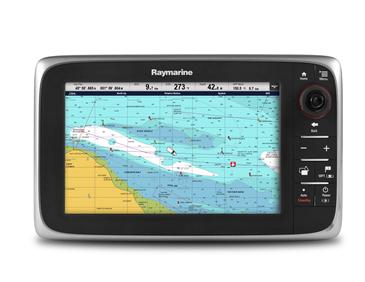

Raymarine c95 9" Multifunction Display with Inland U.S. Charts
The all-new Raymarine c-Series c95 9" multifunction display (MFD) is designed to
deliver no-compromise performance, incredible networking capability, and a
superior user experience. Ideal for sail and power boats of all types. The c95
has a bright, sunlight viewable LCD screen and LED backlighting for maximum
power savings.
The Raymarine c95 MFD includes a standard built-in high sensitivity GPS receiver and
also has dual chart reader slots for Navionics charts on microSD cards.
The c95 is a networking powerhouse with built-in Wi-Fi and Bluetooth Wireless
Networking. Use the Raymarine c95's Wi-Fi to stream its video display to your Apple iPhone
or iPad. Synchronize waypoints and routes wirelessly to the Navionics Lakes and
Marine app. Control your c95 display right from the helm with the optional RCU-3
Bluetooth Remote Control (sold separately.) The c95 can also control your smart
phone or MP3 player’s music playback using Bluetooth control right from the MFD.
The Raymarine c95 also offers robust wired networking including SeaTalkhs, SeaTalkng,
NMEA2000, NMEA 0183 and one composite video input. Network up to 6 displays
together and match them with your choice of Raymarine HD Color radar scanners,
thermal imaging cameras, SIRIUS weather receivers, AIS transceivers, marine
cameras and more.
The Raymarine c95 includes a rubberized protective sun cover, flush mounting
kit, power/data/video cable, installation guide and a
multi-language handbook on CD-ROM.
Raymarine c95 Features
- Includes Inland U.S. Charts
- 9.0” sunlight viewable LCD display with LED backlighting.
- LightHouse User Interface offers fast, easy control using keypad/Unicontroller.
- Built-in high-sensitivity GPS receiver.
- Available with our without Navionics ready-to-navigate charts on microSD
card.
- Wi-Fi video streaming and waypoint synchronization with iPhone and iPad
mobile devices.
- Bluetooth connectivity for optional RCU-3 remote control and multimedia
control.
- Dual core main processor and dedicated graphics co-processor for amazing
speed and performance.
- Expandable networking up to 6 displays using SeaTalkhs
networking.
- Mix and match any combination of C-Series or E-Series displays.
- Composite video input for marine camera, thermal imager or entertainment
source.
- Works with Raymarine digital radar scanners, thermal night vision
systems, SIRIUS weather receivers, AIS receivers, instruments, autopilots
and more.
Raymarine c95 Multifunction Display Specifications
|
Physical |
| |
Width |
11.4 inches (290mm) |
|
| |
Height |
6.8 inches (173mm) |
Not including mounting bracket |
|
Electronic Charts |
| |
Chart card format |
micro-SD |
|
| |
Compatible Charts |
Navionics Ready-to-Navigate |
Silver, Gold, Gold+, Platinum,
Platinum+, Fish 'N Chip, Hotmaps |
|
Conformance |
| |
NMEA |
NMEA2000 certification |
|
| |
Wireless |
WiFi Alliance certification |
|
| |
Europe |
2004/108/EC |
|
| |
Australia and New Zealand |
C-Tick, Compliance Level 2 |
|
|
Physical |
| |
Depth |
2.56 inches (65mm) |
Not including cables |
| |
Depth |
5.90 inches (150mm) |
Including cables |
| |
Weight |
7.8 pounds (3.540 kg) |
|
|
Power |
| |
Nominal Supply Voltage |
12/24 V dc |
|
| |
Operating Voltage Range |
10.8 to 31.2 V dc |
|
| |
Fuse/Breakers |
7A. Standard 20mm glass fuse. |
In-line fuse fitted within power cable. |
| |
Consumption |
16 W |
At full display brightness |
| |
LEN |
1 |
Refer to SeaTalk NG Reference Manual |
|
Installation |
| |
Flush mounting hardware |
Included |
|
| |
Trunion mounting bracket |
Not Included |
|
|
Environmental |
| |
Operating temperature |
-25 ºC to +55 ºC (-13 ºF to 131 ºF) |
|
| |
Storage temperature |
-30 ºC to +70 ºC (-22 ºF to 158 ºF) |
|
| |
Relative humidity |
Maximum 75% |
|
| |
Waterproof rating |
IPX6 |
|
|
Display |
| |
Size |
9-inches (diagonally) |
|
| |
Aspect ration |
16 x 9 Widescreen |
|
| |
Type |
TFT with LED Backlighting |
|
| |
Color depth |
18-bit |
|
| |
Resolution |
800 x 480 pixels (WVGA) |
|
| |
Brightness |
Ultra-sunlight viewable |
|
| |
Viewing angle |
Left/Right: 80/60 degrees, Top/Bottom:
70 degrees |
|
|
Data (Wired) |
| |
NMEA0183 |
2 Ports |
|
| |
NMEA0183 Port 1 |
Input only |
4800 / 9600 / 38400 baud |
| |
NMEA0183 Port 2 |
Input and output |
4800 / 9600 baud |
| |
SeaTalk HS |
1 x SeaTalk HS port |
100 Mbits/s. Micronet connection. |
| |
SeaTalk NG |
1 X SeaTalk NG connection |
Adaptable to NMEA2000 Devicenet. |
|
Data (Wireless) |
| |
WiFi |
802.11 b/g |
|
| |
Bluetooth |
AVCRP 2.1+ EDR power class 1.5 |
|
|
Internal GPS |
| |
Included |
Yes |
|
| |
Satellite Based Aiding System (SBAS) |
WAAS + EGNOS |
|
| |
Operating Frequency |
1575.43 MHz |
|
| |
Signal Acquisition |
Automatic |
|
| |
Almanac Update |
Automatic |
|
| |
Geodetic Datum |
WGS-84 |
Alternatives selectable through e7
interface |
| |
Update rate |
1 second |
|
| |
Antenna |
Patch |
|
| |
Accuracy |
Without SBAS |
<=15 meters 95% of the time |
| |
Accuracy |
With SBAS (WAAS /EGNOS) |
<=5 meters 95% of the time |
|
Video Input |
| |
Number of inputs |
1 |
|
| |
Signal type |
Composite |
|
| |
Format |
PAL, NTSC or SECAM |
|
| |
Connector type |
BNC |
|
|
Electronic Charts |
| |
Chart card slots |
2 |
|
|
