On Sale! Save 5%! IPX8 Submersible PLUS (1.5m depth for 30 minutes)

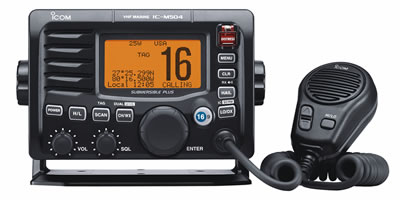

The IC-M504 withstands submersion in up to 1.5m depth of water for 30 minutes.
It is equivalent to the IPX8 standard. All products are rigorously checked to
pass the quality test at the factory.
Large LCD with dot-matrix characters
The IC-M504 has a 168-charactor, full-dot matrix display that allows you to
easily view a variety of information, such as GPS data, DSC emergency data, etc.
The large buttons and knobs provide user friendly operation.
ITU Class D DSC
The IC-M504 has built-in class D DSC, which enables you to constantly monitor
channel 70. This functionality provides users at sea with the peace of mind that
they can call for help by pressing the “Distress” button if the need arises.
Position Request and Position Report
Over and above the DSC, your own and other ships’ position data can be exchanged
with the position request or position report functions. The received position
information can be transferred to external navigation equipment*. In addition,
the polling (request/ reply) function checks whether a specific ship is within
the communications range.
* External GPS receiver and navigation equipments which accept NMEA 0183 format
are required.
Superior receiver performance
The IC-M504 has excellent receive specifications of 80dB (typical) for
intermodulation rejection, adjacent channel selectivity, and 0.22µV (typical)
high sensitivity. The IC-M504’s superior receiver provides excellent resistance
to intermodulation and allows you to catch a weak signal between strong
stations.
Excellent audio output power
The extra large speaker is mounted into a wellspaced housing, producing greater
sound than the specified 4.5W output power. You can get clear and loud reception
without requiring repetition of the message, even over the engine or other
background noise.
25W hailer/RX speaker and auto foghorn
When connected to a hailer horn or external speaker on the deck or tower, you
can make an announcement on-board from the microphone. The RX speaker function,
“receiver-repeater”, allows you to monitor the received audio. Four foghorn
patterns are also available for the automatic foghorn.
Other features
- Dual/tri-watch function for monitoring Ch.16 and/or call channel
- Instant access to Ch. 16 and call channel
- 7 levels adjustable backlit display and keypad
- Convenient “TAG” scanning function with simple add/delete
- Optional Voice Scrambler, UT-112 for private communication
- Supplied speaker microphone to draw the speaker to your ear
- Rear panel microphone version available
Ask your dealer for details
- Black or gray color versions
Optional fully integrated COMMANDMICIII
|
