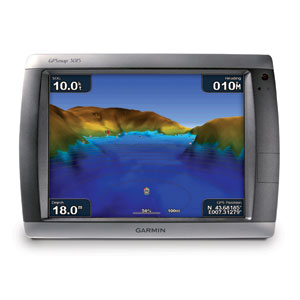

The largest network plotter display in the Garmin marine line, the Garmin
GPSMAP 5015 chartplotter offers true “big picture” navigation.
This chartplotter features the same menu-driven touchscreen found on its
5000-series counterparts. A satellite-enhanced worldwide basemap and a whopping
15" screen make navigation as easy as pointing your finger. By connecting to the
Garmin Marine Network, you can add sonar, radar and weather. And for even more
advanced features, you can add the optional BlueChart g2 Vision card.
View Detailed Graphics and VideoThe Garmin GPSMAP 5015 features a
worldwide basemap with high-quality satellite images in place of more
traditional maps. For even more detail, you can add maps easily with the SD card
slot without having to connect to a computer.
The 5015’s huge XGA screen displays graphics with crisp, video-quality
resolution. To keep tabs on your engine room or another area of your boat, you
can also connect a live video feed with the 5015's video input option.
Add Extras with BlueChart g2 VisionWith optional Garmin BlueChart g2
Vision SD cards, you can add a whole new dimension of exceptional features to
your chartplotter.
- Choose to view 3D map information at "mariner's eye view" above the
waterline or "fish eye view" below the water.
- High-resolution satellite images and aerial photographs help you orient
yourself in unfamiliar areas.
- Auto Guidance technology searches through all relevant charts to create
a route you can actually follow — one that avoids obstacles, shallow water,
buoys and other obstructions.
Connect to the Garmin Marine NetworkThe Garmin 5015 GPS connects
easily to the high-speed Garmin Marine Network, so you can interface with
additional MFDs and add remote sensors. Once connected, you can share
information between the 5015 and other chartplotters on your boat. You can also
add high-powered radar, sonar, and XM satellite weather and radio to your
system.
| Physical & Performance: |
| Unit dimensions, WxHxD:
|
15.5" x 11.7" x 5.7" (39.4 x
29.7 x 14.5 cm) |
| Display size, WxH:
|
9" x 12", 15" diagonal (22.9
x 30.5 cm, 30.7 cm diagonal) |
| Display resolution, WxH:
|
1024 x 768 pixels
|
| Display type: |
Touchscreen XGA display
|
| Weight: |
11.9 lb (5.4 kg)
|
| Battery: |
none |
| Battery life: |
none |
| Waterproof: |
yes (IPX7) |
| Antenna: |
external |
| NMEA input/output:
|
NMEA 0183, NMEA 2000
|
| Maps & Memory: |
| Basemap: |
yes |
| Preloaded maps: |
no |
| Ability to add maps:
|
yes |
| Built-in memory:
|
none (cannot load maps to
internal memory) |
| Accepts data cards:
|
SD card slot (BlueChart g2
Vision cards sold separately) |
|
Waypoints/favorites/locations: |
1,500 |
| Routes: |
20 |
| Track log: |
10,000 points; 20 saved
tracks |
| Features: |
| Garmin radar compatible:
|
yes |
| Garmin sonar compatible:
|
yes |
| CANet™ compatible:
|
no |
| Garmin Marine Network™
compatible: |
yes |
| Supports AIS (tracks target
ships' position): |
yes |
| Supports DSC (displays
position data from DSC capable VHF radio): |
yes |
| Audible alarms: |
yes |
| Tide tables: |
yes |
| Hunt/fish calendar:
|
no |
| Sun and moon information:
|
yes |
| 3D map view: |
yes (with optional BlueChart
g2 Vision card) |
| Auto Guidance: |
yes (with optional BlueChart
g2 Vision card) |
| Automatic routing (turn by
turn routing on roads): |
no |
| XM WX Weather & Radio for
U.S. compatible: |
yes |
| Voice prompts (e.g. "Turn
right in 500 ft."): |
no |
| Remote control: |
yes (optional) |
| Headphone jack/audio
line-out: |
no |
| Audio/video input/output:
|
yes |
| Portable: |
no |
|
Automotive/motorcycle-friendly: |
no |
| Additional: |
Interface Inputs/Outputs: 3
built-in network ports, 4 NMEA 0183 inputs, 2 NMEA 0183 outputs, and
NMEA 2000; 2 video inputs for onboard cameras, 1 XGA PC monitor video
output |
What's in the Box:
- GPSMAP 5015
- GPS Antenna
- Protective front cover
- Top & bottom snap covers
- Video cable assembly
- Power cable assembly
- NMEA 0183 cable
- NMEA 2000 drop cable
- NMEA 2000 power cable
- NMEA 2000 T-connector & terminator kit
- Flush mount hardware
- Flush mount gasket
- Marine grommet kit
- Owner’s manual on disk
- Quick reference guide
- Installation instructions
|
