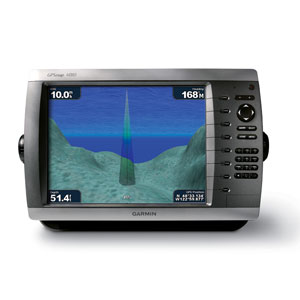

This mid-sized Garmin 4000 series chartplotter fills the gap between the smaller
Garmin GPSMAP 4008 and the wider Garimn GPSMAP 4012. Like its counterparts, the
Garmin 4010 serves as
your all-in-one “nerve center” for the Garmin Marine Network. This chartplotter
has crisp, video-quality resolution on a 10.4” diagonal SVGA display as well as
a worldwide, satellite-enhanced basemap. By connecting to the Garmin Marine
Network, you can add sonar, radar and weather. For even more enhanced features,
you can add the optional BlueChart® g2 Vision card.
View Detailed Graphics and VideoThe 4010 features a worldwide basemap
with high-quality satellite images in place of more traditional maps. And for
more detail, you can add maps easily with the SD card slot without having to
connect to a computer. The Garimn 4010’s high-speed processor draws maps quickly, and
its simple, intuitive interface makes navigating easy. To keep tabs on your
engine room or other areas of your boat, you can also connect a live video feed
with the 4010’s video input option.
Add Extras with BlueChart g2 VisionWith optional Garmin BlueChart g2 Vision
SD cards, you can add a whole new dimension of exceptional features to your
chartplotter.
- Choose to view 3D map information at "mariner's eye view" above the
waterline or "fish-eye view" below the water.
- High-resolution satellite images and aerial photographs help you orient
yourself in unfamiliar areas.
- Auto Guidance technology searches through all relevant charts to create
a route you can actually follow — one that avoids obstacles, shallow water,
buoys and other obstructions.
Connect to the Garmin Marine NetworkThe Garmin 4010 connects easily to the
high-speed Garmin Marine Network, so you can interface with additional MFDs and
add remote sensors. Once connected, you can share information between the 4010
and other chartplotters on your boat. You can also add high-powered radar, sonar
and XM satellite weather and radio to your system.
| Physical & Performance: |
| Unit dimensions, WxHxD:
|
13.4" x 8.9" x 4.2" (34 x
22.6 x 10.7 cm) |
| Display size, WxH:
|
9.7" x 7.3", 10.4" diagonal
(24.6 x 18.5 cm, 26.4 cm diagonal) |
| Display resolution, WxH:
|
800 x 600 pixels
|
| Display type: |
SVGA display |
| Weight: |
7.8 lb (3.5 kg) |
| Battery: |
none |
| Battery life: |
none |
| Waterproof: |
yes (IPX7) |
| Antenna: |
external |
| NMEA input/output:
|
NMEA 0183, NMEA 2000
|
| Maps & Memory: |
| Basemap: |
yes |
| Preloaded maps: |
no |
| Ability to add maps:
|
yes |
| Built-in memory:
|
none (cannot load maps to
internal memory) |
| Accepts data cards:
|
SD card slot (BlueChart g2
Vision cards sold separately) |
|
Waypoints/favorites/locations: |
1,500 |
| Routes: |
20 |
| Track log: |
10,000 points; 20 saved
tracks |
| Features: |
| Garmin radar compatible:
|
yes |
| Garmin sonar compatible:
|
yes |
| CANet™ compatible:
|
no |
| Garmin Marine Network™
compatible: |
yes |
| Supports AIS (tracks target
ships' position): |
yes |
| Supports DSC (displays
position data from DSC capable VHF radio): |
yes |
| Audible alarms: |
yes |
| Tide tables: |
yes |
| Hunt/fish calendar:
|
no |
| Sun and moon information:
|
yes |
| 3D map view: |
yes (with optional BlueChart
g2 Vision card) |
| Auto Guidance: |
yes (with optional BlueChart
g2 Vision card) |
| Automatic routing (turn by
turn routing on roads): |
no |
| XM WX Weather & Radio for
U.S. compatible: |
yes |
| Voice prompts (e.g. "Turn
right in 500 ft."): |
no |
| Remote control: |
yes (optional) |
| Headphone jack/audio
line-out: |
no |
| Audio/video input/output:
|
yes |
| Portable: |
no |
|
Automotive/motorcycle-friendly: |
no |
| Additional: |
Interface Inputs/Outputs: 3
built-in network ports, 4 NMEA input (supports NMEA 2000), 2 NMEA
output, 2 video inputs for onboard cameras, 1 SVGA PC monitor
|
What's in the Box:
- Garmin GPSMAP 4010
- GPS 17x NMEA 2000
- Bail mount and knobs
- Protective front cover
- Top and bottom snap covers
- Video cable assembly
- Power cable assembly
- NMEA 0183 cable
- NMEA 2000 drop cable
- NMEA 2000 10 m backbone cable
- NMEA 2000 power cable
- NMEA 2000 T-connector & terminator kit
- Flush mount hardware
- Flush mount gasket
- Marine grommet kit
- Owner’s manual on disk
- Quick reference guide
- Installation instructions
|
