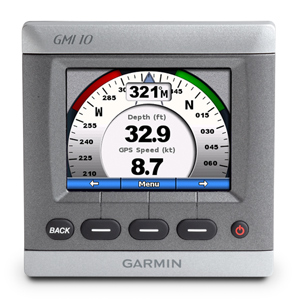

Garmin GMI 10 Marine Instrument Display

The Garmin GMI 10 Digital Marine Instrument display adds a new dimension of flexibility for boaters who want a fully integrated marine instrument system.

The GMI 10 improves upon the traditional method of marine instrumentation, in which standard marine instruments have their own dedicated display. By displaying data from multiple remote sensors on one screen, the GMI 10 offers a streamlined approach to marine instrumentation.

Mariners can use the GMI 10 to display instrument data such as depth, speed through the water, water temperature, fuel flow rate, engine data, fuel level, wind direction and more, depending upon what sensors are connected. In fact, the GMI 10 supports more than two dozen standard NMEA 2000 and more than 20 NMEA 0183 data sentences.

Featuring a bright, 3.5” QVGA screen in a sleek 4-inch flush-mount bezel, the Garmin GMI 10 serves as the hub of a family of integrated Garmin marine sensors, all connected via NMEA 2000 or NMEA 0183 data ports.

The GMI 10 marine instrument family consists of the GFS 10 fuel sensor, NMEA 2000 and NMEA 0183 Intelliducers and the GPS 17x high sensitivity receiver/antenna.

With integration via NMEA 2000 ports, any of these units can be added or removed from the NMEA 2000 bus without affecting other units on the bus. These units can also connect to any Garmin Marine Network chartplotters that have a NMEA 2000 port.

Specifications:

• Unit dimensions, WxHxD: 4.3 " x 4.4 " x 1.9 " (10.9 x 11.1 x 4.8 cm)
• Display resolution, WxH: 320 x 240 pixels
• Display type: Color QVGA display
• NMEA ports: NMEA 0183, NMEA 2000
• Waterproof: yes (IPX7)
• Audible alarms: yes
• Flush mountable: yes
• Auto-on: yes

• Garmin GMI 10
• Mounting hardware
• Protective cover
• Power/NMEA 0183 cable
• NMEA 2000 power cable
• NMEA 2000 drop cable
• NMEA 2000 tee & terminator kit
• Installation instructions
• Quick start manual
