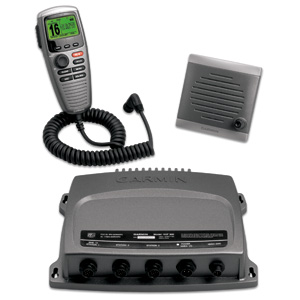

The Garmin VHF 300 marine receiver combines radio communication and 1 or 25
watts of transmit power with multi-station support to give you the flexibility
and convenience you need to safely navigate and communicate on the open waters.
The VHF 300 comes standard with a two-way hailer system and is also NMEA 0183
and NMEA 2000 compliant to offer greater onboard functionality.
Communicate with Confidence
The VHF 300 is equipped with a two-way 30-watt hailer system for
communication with other boats or deckhands. In addition, the VHF 300 has a
patent-pending voicemail feature that lets you pre-record a 15-second message
and deliver the message to any Digital Selective Calling radio. You’ll also have
the ability to replay the last 90 seconds of any incoming voice transmission at
the touch of a button.
Take Full Control
The VHF 300 is operated via the GHS 10 handset microphone that allows full
radio control from a remote location. The GHS 10 features a crisp 2-inch LCD
display, dedicated rotary key for frequent tasks, and three soft buttons for
dynamic controls. The VHF 300 uses the supplied four-inch active speaker with
volume knob, the built-in speaker on the GHS 10 or an optional third-party
passive speaker.
Save Space
With a space-saving black box configuration, you’ll be able to mount the VHF
300 wherever you choose. And with multi-station support, you can add the wired
GHS 10 handset microphones throughout your vessel without having to add existing
receivers. The system can also be used as an on-boat intercom if you have
multiple stations aboard your vessel.
Stay Safe on the Seas
The Garmin VHF 300 provides full NOAA weather alerts and Class D Digital
Selective Calling (DSC) capability via NMEA 0183 or NMEA 2000 connectivity.
Should trouble arise, DSC provides distress calls with the push of a button. And
if your boat is already interfaced with a compatible GPS chartplotter, you’ll
get mayday signaling and a digital broadcast of your boat’s position. The VHF
300 also features Position Tracking, which allows a mariner to locate and keep
tabs on up to three other boats in the area.
Physical & Performance
- Unit Dimensions, WxHxD: 9.75 x 7.09 x 2.5" (24.8 x 18 x 16.4 cm)
- Waterproof: yes (IPX7)
- Temperature Range: from 14ºF to 122ºF (from -10ºC to 50ºC)
- Compass-safe Distance: 20 in. (500 mm)
- Digital Selective Calling: Class D
- Frequency Bands: All USA, Canadian, and International marine
channels; 10 NOAA weather channels
- Operating Voltage: from 10.8 to 15.6 Vdc (12 Vdc boat battery)
- Current Drain: Transmit High Power: 6 A max; Transmit Low Power:
2 A max
- Transmitter Power (at 13.6 Vdc): High Power: 25 W (23-25 W); Low
Power: 1 W (.7-1 W)
- Full-function Handset: Impedance: 4 Ω; Input Power: 4 W
- External Speaker: Output Power: 4 W (4 Ω/max)
What's in the Box:
- Garmin VHF 300
- GHS 10
- Active speaker
- Power cable
- Deck cable (10 meters)
- Mic hanger
- Mounting hardware
- Documentation
|
