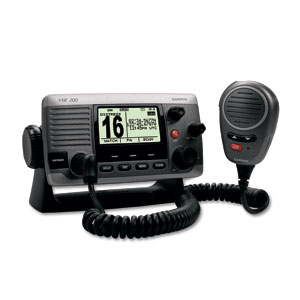

The Garmin VHF 200 marine receiver provides radio communication and features
intuitive design to enhance convenience and safety to mariners worldwide. The
VHF 200 comes standard with a two-way hailer system and is also NMEA 0183 and
NMEA 2000 compliant to offer greater onboard flexibility and functionality.
Communicate with Confidence
With up to 25 watts of transmit power at your fingertips, you’ll be able to
stay in touch anywhere on the water. The VHF 200 comes standard with a removable
speaker microphone and a built-in 20-watt public address (hailer) system that
can be connected to a hailer horn or external speaker on the deck or tower. The
VHF 200 also supports one wired GHS 10 hand-set microphone that allows full
radio control from a remote location. So no matter where you are or where you’re
heading, you’ll always have a line of communication open to make sure every
voyage is a safer voyage.
Safety First
The Garmin VHF 200 provides full Class D Digital Selective Calling (DSC)
capability via NMEA 0183 or NMEA 2000 connectivity. Should trouble arise, DSC
provides distress calls with the push of a button. And if your boat is already
interfaced with a compatible GPS chartplotter, you’ll get mayday signaling and a
digital broadcast of your boat’s position. The VHF 200 also features NOAA
weather alerts and Position Tracking, which allows a mariner to locate and keep
tabs on up to three other boats in the area.
At-A-Glance Information
The VHF 200 has a simple user interface that’s easy to read while on the go
so you’ll always have the right information at the right time. In addition to
dedicated buttons and knobs for ease of use, the VHF 200 features three soft
keys linked to onscreen menus that allow boaters to see and select the
information they want. The VHF 200 also offers premium sound quality so every
message is loud and clear. And to make sure the data stands out, the information
is available on a 3.2-inch display – the largest screen available in its class.
Detailed Design
The VHF 200 is ready to take on the elements. And to simplify the
installation process, it can also be mounted in a variety of configurations.
With removable front caps, the VHF 200 can be easily added in cockpit consoles
or cabin bulkheads. It’s the only front flush-mounting capable marine radio
available on the market today, which makes the VHF 200 as flexible as it is
functional. It’s made to last with rugged design that’s also submersible (IPX7
standards), so you’ll get a full-featured marine receiver that’s ready to go in
a compact fixed-mount design.
Physical & Performance
- Unit Dimensions, WxHxD: Flush-Mounted: 7.16 x 3.86 x 6.42" (18.2
x 9.8 x 16.3 cm); Bracket-Mounted: 7.56 x 4.65 x 6.42" (19.2 x 11.8 x 16.3
cm)
- Waterproof: yes (IPX7)
- Temperature Range: from 14ºF to 122ºF (from -10ºC to 50ºC)
- Compass-safe Distance: 20 in. (500 mm)
- Speaker Microphone Audio Power: 94 dBA
- Digital Selective Calling: Class D
- Frequency Bands: All USA, Canadian, and International marine
channels; 10 NOAA weather channels
- Operating Voltage: 12.0 Vdc
- Current Drain: Standby: 350 mA; Receive: 600 mA; Transmit: 6.0 A
at HI power (25 W); 2.0 A at LO power (1 W)
- Hailer Output Power: 20 W at 4 Ω
- Transmitter Output (at 13.6 Vdc): 25 W (HI); 1 W (LO)
- Frequency Range: Hailer Output Power: 156.050 MHz to 163.275 MHz
(including WX channels)
What's in the Box:
- Garmin VHF 200
- Hailer NMEA 0183 cable
- Power cable
- Bail mount and knobs
- Flush mount gasket
- Marine mounting screws
- Mic hanger
- Protective cover
- Removable Speaker Mic
- Documentation
|
