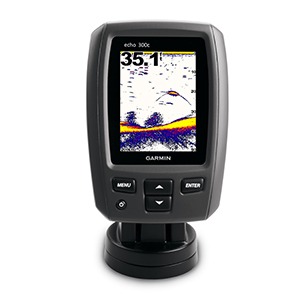

Garmin Echo 300c
The Garmin echo 300c is the only color, dual-beam fishfinder on the market at
this price, making it the premier sonar option for fishermen on a budget.
See What Lies Below
The Garmin echo 300c is designed to make catching fish a cinch. It’s just
that simple. The system’s 3.5 in sunlight-readable display and exclusive Garmin
HD-ID target tracking technology let you see through the water like never
before. Plus, a 300-watt (RMS) sounder offers a viewing angle of up to 120
degrees and bottom detail to 1,500 ft.
For an uninterrupted view of the sonar image, the Garmin echo 300c also
boasts Garmin Smooth Scaling technology, which means you won’t lose sight of the
sonar history as the unit changes depth ranges.
Mount & Go
Designed with simplicity in mind, the Garmin echo 300c is one most intuitive
fishfinders on the market. Installation takes only a few minutes using the
quick-release tilt mount and versatile transom-mount transducer included in the
box.
Echo 300c Features:
- Garmin HD-ID technology
- 300 watts (RMS) transmit power
- Depths to 1,500 ft
- Beam width to 120 degrees
- 3.5 in sunlight-readable color display
- Tilt/swivel mount, transducer, trolling motor clamp and transom mount
Physical & Performance:
|
| Unit dimensions, WxHxD:
|
4.1" x 5.8" x 2.8" (10.4 x
14.7 x 7.1 cm) |
| Display size, WxH:
|
2.1" x 2.8" (5.3 x 7.1 cm);
3.5” diag (8.9 cm diag) |
| Display resolution, WxH:
|
240 x 320 pixels
|
| Display type: |
QVGA, 256 colors
|
| Weight: |
11.6 oz (330 g) |
| Waterproof: |
yes (IPX7) |
Features:
|
| Audible alarms: |
yes |
| Dual-frequency sonar
capable: |
no |
| Dual-beam sonar capable :
|
yes |
| Split-screen zoom:
|
yes |
| Ultrascroll (displays fish
targets at higher boat speeds): |
yes |
| Fish Symbol ID (helps
identify fish targets): |
yes |
| AutoGain Technology
(minimizes clutter, maximizes targets): |
yes |
| Whiteline (indicates hard or
soft bottom): |
no |
| Adjustable depth line
(measures depth of underwater objects): |
yes |
| A-scope (real time display
of fish passing through transducer beam): |
yes |
| Bottom lock (shows return
from the bottom up): |
yes |
| Water temperature log and
graph: |
yes |
| Water temperature sensor
included: |
yes |
| Water speed capable
(displays speed on water): |
yes |
Other:
|
| Frequency: |
200/77 kHz |
| Transmit power: |
300W (RMS)/2,400W (peak to
peak) |
| Voltage range: |
10V - 28V input |
| Maximum depth: |
1,500 ft freshwater |
| Cone angle: |
60º or 120º (dual beam)
|
| Additional: |
*Depth capacity is dependent
on water bottom type and other water conditions |
What's In The Box
- Garmin Echo 300c
- Quick release mount with tilt and swivel
- Power cable
- Transducer with mounting bracket, hardware and trolling motor clamp
- Documentation
|
