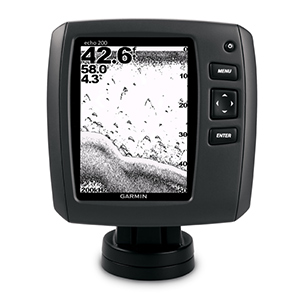

Garmin Echo 200
The Garmin echo 200’s 5 in grayscale display and 300-watt (RMS) sonar lets
you see more for less than you might imagine.
Make the Most of HD-ID Technology
This versatile fishfinder combines easy operation with a powerful 300 watts
(RMS) of high-sensitivity sonar and a big 5-inch grayscale display. Coupled with
Garmin’s exclusive HD-ID target tracking technology, you’ll get a clear picture
of what lies below you, virtually eliminating guesswork from your day on the
water. The system’s dual-beam transducer scans deep water to 1,500 ft with a
wide scanning angle perfect for shallow water, as well.
For an uninterrupted view of the sonar image, the Garmin echo 200 boasts
Garmin Smooth Scaling technology, which means you won’t lose sight of the sonar
history as the unit changes depth ranges. It also allows you to rewind your
sonar history in order to ensure that you haven't missed a thing.
Mount & Go
The Garmin echo 200 is one of the most intuitive fishfinders on the market.
Installation takes only a few minutes using the quick-release tilt mount and
versatile transom-mount transducer included in the box.
Echo 200 Features:
- Garmin HD-ID technology
- 300 watts (RMS) transmit power
- Depths to 1,500 ft
- Beam width to 120 degrees
- 5-inch, 16-level grayscale display, 480 x 320 HVGA
- Tilt/swivel mount, transducer, trolling motor clamp and transom mount
Physical & Performance:
|
| Unit dimensions, WxHxD:
|
6.0” x 5.9” x 1.8” (15.2 x
15.0 x 4.6 cm) |
| Display size, WxH:
|
2.9”W x 4.0”H (7.4 x 10.16
cm); 5” diag, (12.7 cm) |
| Display resolution, WxH:
|
320 x 480 pixels
|
| Display type: |
16-level grayscale, HVGA
|
| Weight: |
17.6 oz (499 g) |
| Waterproof: |
yes (IPX7) |
Features:
|
| Audible alarms: |
yes |
| Dual-frequency sonar
capable: |
no |
| Dual-beam sonar capable :
|
yes |
| Split-screen zoom:
|
yes |
| Ultrascroll (displays fish
targets at higher boat speeds): |
yes |
| Fish Symbol ID
(helps identify fish targets): |
yes |
| AutoGain Technology
(minimizes clutter, maximizes targets): |
yes |
| Whiteline (indicates hard or
soft bottom): |
yes (always on) |
| Adjustable depth line
(measures depth of underwater objects): |
yes |
| A-scope (real time display
of fish passing through transducer beam): |
yes |
| Bottom lock (shows return
from the bottom up): |
yes |
| Water temperature log and
graph: |
yes |
| Water temperature sensor
included: |
yes |
| Water speed capable
(displays speed on water): |
yes |
Other:
|
| Frequency: |
200/77 kHz |
| Transmit power: |
300W (RMS)/2,400W (peak to
peak) |
| Voltage range: |
10V - 28V input |
| Maximum depth: |
1,500 ft freshwater |
| Cone angle: |
60º or 120º (dual beam)
|
| Additional: |
*Depth capacity is dependent
on water bottom type and other water conditions. |
What's In The Box
- Garmin Echo 200
- Quick release mount with tilt and swivel
- Power cable
- Transducer with mounting bracket, hardware and trolling motor clamp
- Documentation
|
