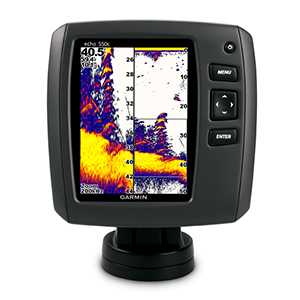

Garmin Echo 550c
With one of the best and brightest screens on the water, echo 550c will
redefine color sonar scanning for freshwater fishing.
Get the Clearest Possible Picture
The Garmin echo 550c turns fish into sitting ducks. That’s because of its
powerful sonar with 500 watts (RMS) power with Garmin’s exclusive HD-ID target
tracking technology. A video-quality 640x480-pixel VGA screen provides you an
amazing level of detail on fish returns, structure and bottom contours.
With the Garmin echo 550c, you can see well beyond the sides of your boat
thanks to a dual-beam transducer with up to 120 degree viewing angle. Plus the
powerful sonar lets you see as deep as 1,900 ft.
Don't Miss A Fish
For an uninterrupted view of the sonar image, the Garmin 550c boasts Garmin
Smooth Scaling technology, which means you won’t lose sight of the sonar history
as the unit changes depth ranges. It also feature the ability to rewind your
sonar history in order to ensure that you haven't missed a thing.
Mount & Go
The Garmin echo 550c is one of the most intuitive fishfinders on the market.
Installation takes only a few minutes using the quick-release tilt mount and
versatile transom-mount transducer included in the box.
Echo 550c Features:
- Garmin HD-ID technology
- 500 watts (RMS) transmit power
- Depths to 1,900 ft
- Beam width to 120 degrees
- 5 in video-quality color display
- Tilt/swivel mount, transducer, trolling motor clamp and transom mount
Physical & Performance:
|
| Unit dimensions, WxHxD:
|
6.0" x 5.9" x 1.8" (15.2 x
15.0 x 4.6 cm) |
| Display size, WxH:
|
2.9” x 4.0” (7.4 x 10.16
cm); 5” diag, (12.7 cm) |
| Display resolution, WxH:
|
480 x 640 pixels
|
| Display type: |
VGA, 256 colors |
| Weight: |
17.6 oz (499 g) |
| Waterproof: |
yes (IPX7) |
Features:
|
| Audible alarms: |
yes |
| Dual-frequency sonar
capable: |
no |
| Dual-beam sonar capable :
|
yes |
| Split-screen zoom:
|
yes |
| Ultrascroll (displays fish
targets at higher boat speeds): |
yes |
| Fish Symbol ID (helps
identify fish targets): |
yes |
| AutoGain Technology
(minimizes clutter, maximizes targets): |
yes |
| Whiteline (indicates hard or
soft bottom): |
no |
| Adjustable depth line
(measures depth of underwater objects): |
yes |
| A-scope (real time display
of fish passing through transducer beam): |
yes |
| Bottom lock (shows return
from the bottom up): |
yes |
| Water temperature log and
graph: |
yes |
| Water temperature sensor
included: |
yes |
| Water speed capable
(displays speed on water): |
yes |
Other:
|
| Frequency: |
200/77 kHz |
| Transmit power: |
500W (RMS)/4,000W (peak to
peak) |
| Voltage range: |
10V - 28V input |
| Maximum depth: |
1,900 ft freshwater |
| Cone angle: |
60º or 120º (dual beam)
|
| Additional: |
*Depth capacity is dependent
on water bottom type and other water conditions. |
What's In The Box
- Garmin Echo 550c
- Quick release mount with tilt and swivel
- Power cable
- Transducer with mounting bracket, hardware and trolling motor clamp
- Documentation
|
