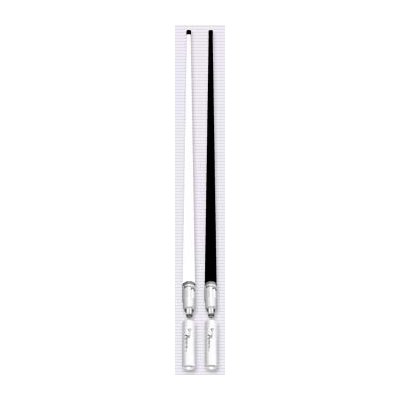

A
quality N-type connector guarantees the best connection on these dual band
cellular antennas. They offer extended range to analog and digital cell phones.
Versatile and easy to install on a standard 1"-14 threaded mount or U-bolted to
a tube/mast.
-
Stainless steel male ferrule
-
Stainless steel double female ferrule included to mount standard 1"-14
threads
-
High-gloss urethane finish
-
Powerful brass radiators
-
Soldered connections
-
Ferrite choke bead
-
Female N-type connector
-
Quality marine cable such as RG8X, RG8 or RG213 should be used to connect to
N-connector
-
Max Input Power = 250 Watts
-
VSWR = 1.15:1 @ 850 MHz and 1.15:1 @ 1.9 GHz
-
Bandwidth VSWR < 2.0:1 = 810-950 MHz and 1.8 - 1.98 Ghz
Made to use with all cellular systems: CDMA, TDMA, PCS, GSM, DCS, iDEN
and AMPS. Compatible with all analog, digital, dual band and tri-mode phones.
Matching VHF Antennas:
829-VW: 8' White
829-VB: 8' Black
|
