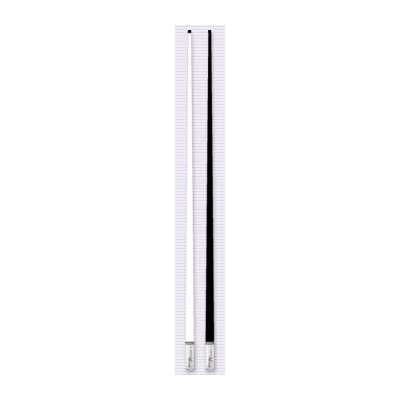

Excellent cellular, VHF and PCS communication in one 8' antenna. Strong signal
pulling power with 9dB gain for cellular and PCS, and 5dB gain for VHF. The best
choice when mounting locations are limited. Ideal as a backup VHF.
The Trifecta VHF / Cell / PCS is made to use with all cellular systems: CDMA,
TDMA, PCS, GSM, DCS, I-den & AMPS and is compatible with all analog, digital,
dual band and tri-mode phones.
-
Stainless steel ferrules
-
High-gloss urethane finish
-
Powerful brass radiators
-
Soldered connections
-
Power directing ferrite choke bead
-
Includes two 20' exclusive low loss, foil shielded, UV stable RG-8X marine
cables
-
Easy installation; factory installed mini-UHF connectors on each cable
-
Includes PL-259 adapter for VHF and double male mini-UHF adapter for
cellular
-
Mounts 1”-14 threaded base
| |
Gain |
Max Input
Power |
VSWR |
Bandwidth
VSWR |
|
VHF |
5dB |
250 Watts |
1.2:1@156.8 MHz |
<2.0:1=6 MHz |
|
Cellular |
9dB |
250 Watts |
1.15:1@850 MHz |
<2.0:1=810-950 MHz |
|
PCS |
9dB |
250 Watts |
1.15:1@1900 MHz |
<2.0:1=1800-1980 MHz |
|
