Operating in the VHF maritime band, the AIS system enables the wireless
exchange of navigation status between vessels and shore-side traffic monitoring
centers. Commercial ships, ocean going vessels and other boats equipped with AIS
transmitters broadcast AIS messages that include the vessel’s name, course,

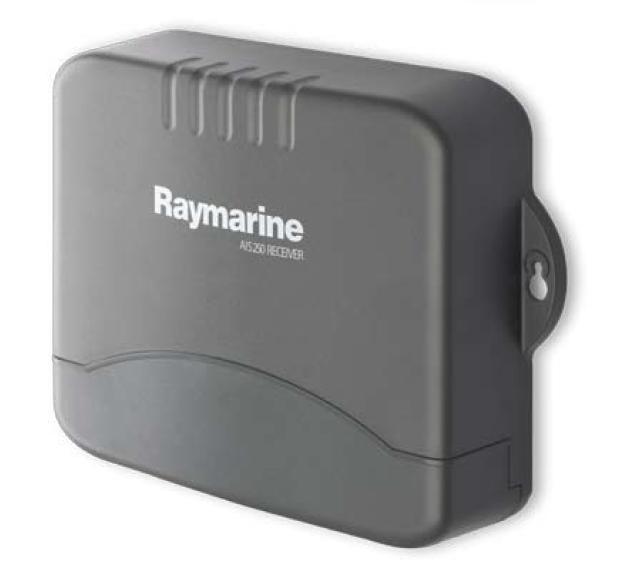

speed, and current navigation status. The Raymarine AIS250 Receiver module is a
“listen only” AIS receiver that easily integrates with an existing VHF antenna
using a built in VHF splitter. The AIS250 then interfaces to Raymarine
multifunction displays, allowing AIS targets to be graphically overlaid in both
the chartplotter and radar modes.
- Automatic Identification System (AIS) Receiver
- Improve Collision Avoidance
- Enhance Situational Awareness
- Track AIS targets with Raymarine C-Series and E-Series multifunction
displays
- Built-in VHF/FM splitter. No additional VHF antenna required
- Built-in NMEA 0183 multiplexer simplifies interfacing
- Support for NMEA 0183 at both 4800 and 38,400 baud
SYSTEM REQUIREMENTS
- VHF Antenna
- Chartplotter, Multifunction display or PC application with NMEA 0183
input and AIS compatibility
- Raymarine Multifunction Displays requirements
- C-Series software version 3.18 or higher
- E-Series software version 3.22 or higher
|
