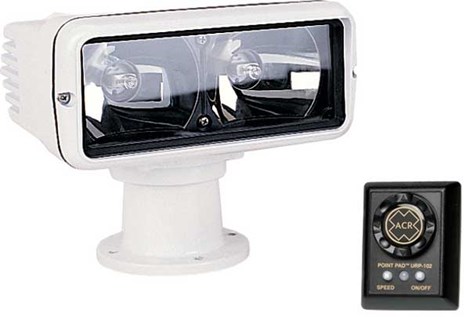

  ACR RCL-100D Spotlight
Click to enlarge

ACR RCL-100D Spotlight

Item #: ACRRCL100D-12V





List Price:


Regular Price:


Sale Price:



Free Shipping Available!

In Stock - Ships the next business day.
No restocking fees on return.
Click to verify BBB accreditation and to see a BBB report.


Thanksgiving Sale! Save until December 1st or while supplies last!

  • RCL-100D - 200,000 candela
  • Internal elevation mechanism provides pitch control of spotlight beam while protecting elevation mechanism from weather
  • High intensity 55W Halogen lamps and parabolic reflectors provide intense concentrated spotlight beam
  • Housing rotates a full 360░ allowing all-around illumination capability
  • Option of 12 or 24VDC operating system
  • Includes a fingertip remote control Point Pad; up to six remote Point Pad units may be installed on system
  • Rugged weatherproof enclosure for years of reliable service
Size: RCL-100D - 8.0 x 9.0 x 8.0 in (20.3 x 22.9 x 20.3 cm)
Weight: RCL-100D - 7.2 lbs (3.2 kg)


Die-cast with the most corrosion-resistant grade aluminum alloy available
Color: White
Operation: Remote controlled
Accessories: Secondary Point Pad for remote control with install kit - P/N 9282.2

RCL-100D specific spare parts:

55W/12V Halogen lamp - P/N 6001
55W/24V Halogen lamp - P/N 6003
12V searchlight only - P/N 1925
24V searchlight only - P/N 1926
Beam Angle: RCL-100D- 5░ vertical, 7░ horizontal
Elevation Angle: 9░ up, 17░ down
Rotation: RCL-100D- 360░
Rotation Speed: RCL-100D - Fast 28░ per second, Slow 18░ per second
Elevation Speed: RCL-100D - 2░-7░ per second - (12VDC) 5░-8░ per second - (24VDC)
Lamp: High intensity 55W Halogen
Limited Warranty: 1 year
Carton Dimensions: RCL-100D - 13.0 x 21.0 x 10.0 in (33.0 x 53.0 x 25.4 cm)
Units per Carton: 1
Carton Weight: RCL-100D - 14.0 lbs (6.3 kg)
