Collinear-phased 5/8-wave with two coaxial chokes to suppress cable radiation

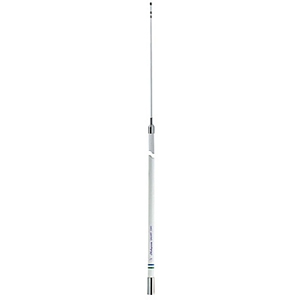

A truly professional quality antenna, Shakespeare's Style 5399 is a performance powerhouse. It's extra strong--sturdy enough to be self-supporting, even in high winds and high speeds.
Brass and copper elements for maximum range and efficiency
Stainless steel ferrule with standard 1"-14 thread
20' RG-8/X low-loss cable plus a PL-259 connector
Suggested mount: Requires Shakespeare's extra heavy duty Style 4187-HD Ratchet Mount for self-supporting applications, or use a Style 452 mounting kit if an upper support bracket is preferred.
Two sections: Base 105", Tip 105" - UPS shippable
Shakespeare Limited Warranty: 5 years
Specifications:
Max. Power Input: 100
SWR: nominally 1.5:1 at 156.8 MHz
Bandwidth: 3 MHz within 2.0:1 VSWR
Frequency: VHF Marine Band
DC Grounding*: Yes
Polarization: Vertical
Impedance: 50 ohms
*DC Ground: Yes means the antenna will test as "shorted" when checked with an ohm meter.
Mounts not included. PL-259 connector supplied, but not installed.
