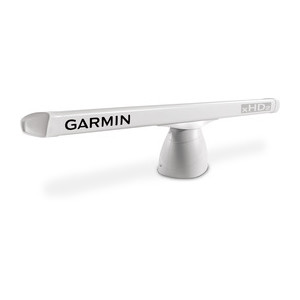

Garmin GMR 2526 xHD2 Open Array Radar and
Pedestal
6-foot Open Array Radar with 25 kW of Power
- 6-foot 25 kW GMR 2526 xHD2 open-array radar
with pedestal
- The only 6-foot 25 kW radar that fully
integrates with Garmin chartplotters
- Provides radar data overlay onto charts
(autopilot or heading sensor required)
- The only 6-foot 25 kW radar available with
Auto Bird Gain, which helps locate flocks of birds and helps signal the
location of big game fish
- Pulse Expansion maximizes energy on target,
increasing target size
This is the only 6-foot 25 kW open-array radar
that can fully integrate with Garmin chartplotters. It will provide radar data
overlay onto your charts when used with autopilot or heading sensor. The GMR
2526 xHD2 has the power to deliver excellent target separation and amazing image
clarity. It also features our Auto Bird Gain setting, which helps locate flocks
of birds at the water’s surface and helps signal the location of game fish.
Pulse Expansion setting allows you to maximize energy on targets and increase
target size. Dynamic Auto Gain and Sea Filter automatically adjust to your
surroundings for optimal performance in all conditions. Dual radar capability
allows more than 1 radar running at the same time. Dual range capability shows
close and long range at the same time. Range: 96 nautical miles. Easy to install
and easy to use, that’s the power of simple.
High-power xHD2 Radar with Narrow 1.1 Degree Beam
Our most powerful 6-foot high-definition radar
with 25 kW of power, delivers excellent range, up to 96 nautical miles, even in
fog or rain. Its narrow 1.1 degree horizontal beamwidth means it can pick out
weaker targets further off in the distance than wider beamwidths. The result is
this radar paints a clear, concise image of the shoreline, other vessels, and
impending weather on your Garmin chartplotter. You get consistent target
positions, excellent target separation and reliable operation. Its 8-bit true
color imagery also helps you discriminate large targets from small ones and
enhances target separation. Rotation speeds of 24 and 48 rpm with a max range
scale of 96 nautical miles.
Pulse Expansion
Provides the ability to increase the duration of the transmit pulse, which helps
maximize the energy on targets. This provides larger target size on the
chartplotter.
Auto Bird Gain
Fishermen know, when you find birds at the water’s surface, you’ll also find
fish. To further improve your fishing experience, use Auto Bird Gain, which
helps to locate birds at the water’s surface where baitfish are also likely to
be found.
Echo Trails
A historical “trail” is left on the screen to help you quickly and easily
identify moving targets and potential collision threats.
Dual Range
Single radar antenna is capable of providing split screen images on your
chartplotter for both close and long range.
Dual Radar Support
Provides redundancy and the ability for each display unit on the boat to select
data from 1 of 2 different radar sources.
Dynamic Auto Gain
Dynamic Auto Gain automatically adjusts gain levels to optimum settings for
harbors, near shore and offshore in open waters.
Dynamic Sea Filter
Dynamic Sea Filter automatically adjusts gain to calm, medium and rough sea
conditions.
Radar Overlay
Overlays the radar image on the chartplotter’s map page.
MARPA Target Tracking
Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets,
helping you keep track of other vessels and avoid collisions.
Guard Zone
Set the safety zone and receive an alarm when an object enters the zone.
VRM and EBL
Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid
measurements of distance and bearing to vessels and land.
The Power of Simple…Radar
This radar is designed to be easy to install and
use. There are no complex user settings to fuss around with, just install it and
start using. You can rely on the GMR xHD2 to provide reliable, optimum
performance in all conditions.
Specifications
Physical & Performance
| Physical Dimensions |
6' Array: 76.25" x 5" x 6.75" (193.6 x
12.7 x 17.1 cm)
Pedestal: 20.5" x 12.75" x 12.5" (52 x 32.4 x 31.8 cm) |
| Weight |
Array: 16.9 lb (7.7 kg)
Pedestal: 47.1 lb (21.4 kg) |
| Waterproof Rating |
IPX6 |
| Antenna Length |
72" (182.88 cm) |
| Power Consumption |
100 W |
| Rotation Speed (RPM) |
24 and 48 rpm |
| Transmit Power |
25 kW |
| Power Input |
10-32 V |
| Beam Width |
1.1° horizontal, 23° vertical |
| Maximum Range |
96 nm |
| Minimum Range |
20 meters |
| Radar Type |
Open-Array |
Radar Features
| High definition (outstanding
target separation with less screen clutter) |
Yes |
| MARPA target tracking (collision
avoidance) |
Yes (Requires Heading Sensor, Sold
Separately) |
| Guard Zone Alarm |
Yes |
| Color |
8-Bit |
| Radar Overlay Support |
Yes |
| Dual Range Support |
Yes |
| Timed Transit |
Yes |
| No Transmit Zone |
Yes |
| Auto Gain |
Dynamic |
| Sea Filter |
Dynamic |
Additional
| Auto Bird Gain |
Yes |
| Dual Radar Support |
Yes |
| Echo Trails |
Yes |
| Programmable Antenna Parking Position |
Yes |
| Max Wind Speed |
80 kt |
Normal Mode
| Range |
Pulse Width |
Pulse Repetition
Frequency (PRF) |
| 0.125-0.75 nm |
100 ns |
3840 Hz |
| 1-1.5 nm |
150 ns |
2560 Hz |
| 2 nm |
250 ns |
1280 Hz |
| 3-12 nm |
370 ns |
1280 Hz |
| 16-96 nm |
750 ns |
640 Hz |
Pulse Expansion Mode
| Range |
Pulse Width |
Pulse Repetition
Frequency (PRF) |
| 0.125-0.75 nm |
200 ns |
1280 Hz |
| 1-1.5 nm |
300 ns |
1280 Hz |
| 2 nm |
500 ns |
640 Hz |
| 3-96 nm |
750 ns |
640 Hz |
What's in the Box
- GMR 2526 xHD2 (Antenna and Pedestal)
- Mounting hardware kit and template
- Power cable (15 meters)
- Network cable (15 meters)
- Cable grommet
- Voltage converter
- Documentation
|
