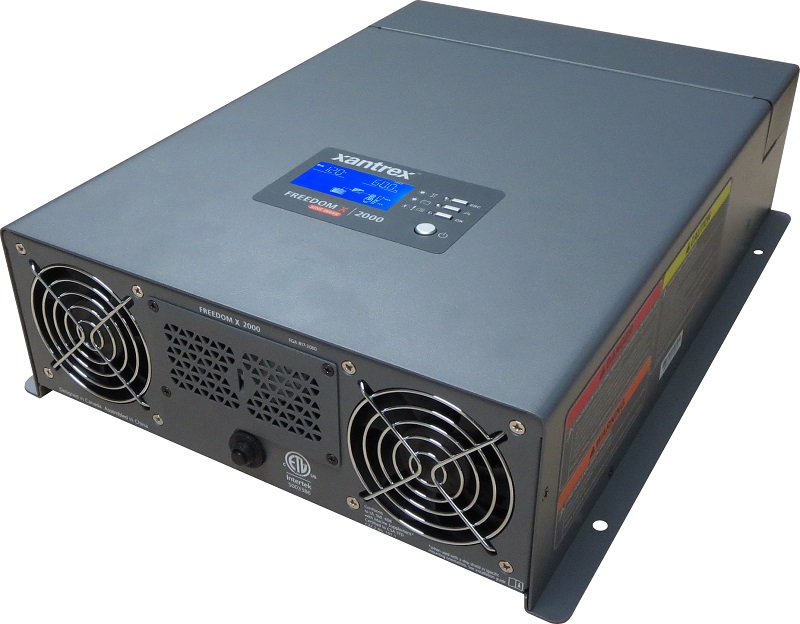

  Xantrex Freedom X2000 2000W True Sine Wave Inverter
Click to enlarge

Xantrex Freedom X2000 2000W True Sine Wave Inverter

Item #: XAN817-2000



Quantity:

20%

List Price:

$882.76

Price:

$701.99



$6.00 Shipping Available!


In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Xantrex Freedom X 2000 Watt True Sinewave Inverter

Model: 817-2000
  • Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
  • True Sine Wave AC Power: For operation of sensitive and motor loads
  • Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
  • Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
  • Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
  • Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Specifications
Electrical Specifications
Operating voltage120, 110, 108 VAC
Continuous powerContinuous Power 2000 W @40 C True sine wave
Continuous current16.7 Amps
Surge power4000 watts
Frequency60 Hz
Peak efficiency91%
Full load efficiencyGreather than or equal to 87%
Operating voltage range85-140 VAC
Safe Non-Operating voltage rangeUp to 240VAC
General Specifications
Operating temperature range-4 to 140 F (-20 to 60 C), with output derated above 104 F (40 °C)
Storage Temperature Range-40 to 158 F (-40 to 70 C)
Humidity5 to 95% RH, non-condensing
Transfer Relay Rating30Amp
Operating voltage rangeLBCO voltage - 18.0 VDC
Maximum Non-Operating Voltage24.0 VDC
Nominal Voltage (Inverting)12 VDC
Nominal Current at Full Load192ADC
Dimensions15.4"(390mm) x 10.8"(275mm) x 4.0"(102mm)

What's in the Box:
  • Freedom X unit
  • Plastic bushings for large DC cables
  • Pre-installed ground lug
  • Documentation
