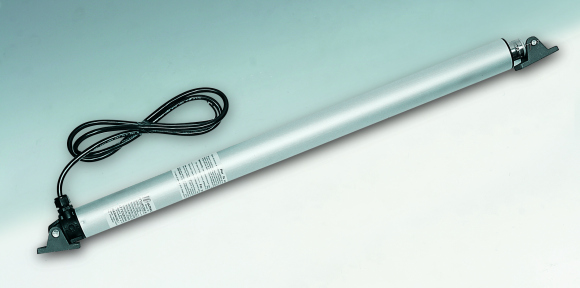

According to the load required, the AV hatch lifter can be mounted
individually, or in twin cylinder installations for heavier loads. It is
also possible to install more then two AV actuators in multiple
applications.
Maximum load for single installations: 1200N (120 kg - 265 lbs)
Maximum load for dual installations: 2400N (240 kg - 529 lbs)
Maximum load is recommended not to be exceeded.
Supplied with all mounting hardware.
Stainless steel telescopic ram for manual operation in case of
emergency.
Available on request without manual emergency opening device for high
performance boats.
Circuit breaker to stop accidental overloading of the system and
electronic stop at closed or full open position.
IP 65 protection rated
Speed: 25mm/sec no load applied, 17 mm/sec maximum load
Current absorption in single installations: 10A at 12V, 5A at 24V
Current absorption in dual installations: 20A at 12V, 10A at 24V
AV 12VDC models are Ignition Protected. UL1500 - ISO8846 approved.
Specifications:
Volt- 12V DC
Stroke- 300 mm
Length (full closed actuator)- 677 mm (26.6")
