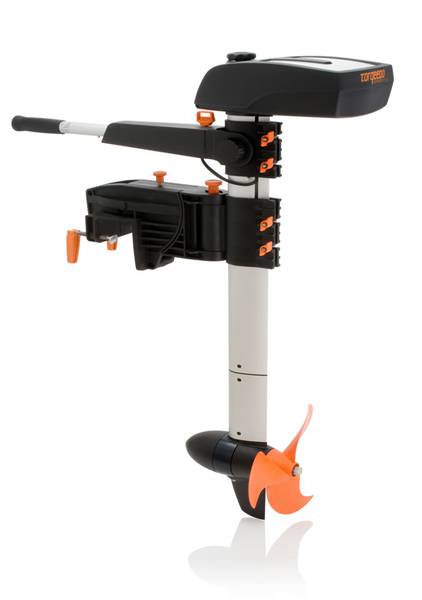

The revolutionary boat drive: ultra lightweight, ultra mobile, ultra strong
The foldable Torqeedo outboards with integrated lithium-manganese
high-performance battery redefine mobility:
- With their integrated lithium-manganese, high-performance battery, the
Travel motors are the only electric outboard
motors which do not need an external battery connection.
- The Torqeedo Travel is a true lightweight: with a total weight of 25
pounds (short shaft version) including battery, it is asserting itself as
the lightest outboard on the market.
- The Travel models are the only foldable outboard motors available on the
market. They come in a waterproof travel pack and, hence, are unique with
regard to their transportability. With their dimensions of 12.2 x 12.6 x
17.7 inches, they can easily be stowed away on board or at home.
- Together with the BaseTravel and Torqeedo Cruise models, the Travel
models are the most efficient motors around at the moment. Their
efficiency is up to twice that of the conventional motors.
The sum total of these properties make a Torqeedo Travel motor into the
perfect drive for small boats, dinghies, tenders, jollies, and daysailors up to
1.5 tons of displacement. There is simply no competition when it comes to
performance, transport and space-saving storage -both on board and on land.
Due to their unique folding mechanism, the Torqeedo Travel models can
be reduced to a handy format
In the waterproof travel pack, the motor can be transported easily. The
Torqeedo Travel can also easily be stored on board and only requires a little
space. This ensures balanced weight distribution during sailing, and makes it
into the optimum electric motor propulsion system for smaller boats. The
integrated LIMA high-performance batteries are immune against memory-effects and
keep their charge stable, even when stored for months.
| |
401 S |
401 L |
801 S |
801 L |
| Input
power in watts |
400 |
400 |
800 |
800 |
| Rated
voltage in volts |
14.8 |
14.8 |
29.6 |
29.6 |
| Final
voltage in volts |
16.8 |
16.8 |
33.6 |
33.6 |
|
Propulsive power in watts |
175 |
175 |
350 |
350 |
|
Comparable gas outboards (propulsive power) |
1 hp |
1 hp |
2 hp |
2 hp |
|
Comparable gas outboards (thrust) |
2 hp |
2 hp |
4 hp |
4 hp |
| Maximum
overall efficiency in % |
44 |
44 |
44 |
44 |
| Static
thrust in lbs |
40 |
40 |
68 |
68 |
| Total
weight in lbs |
25.1 |
26.4 |
25.6 |
26.9 |
| Weight of
motor without battery in lbs |
17.4 |
18.7 |
17.9 |
19.2 |
| Weight of
integrated battery in lbs |
7.7 |
7.7 |
7.7 |
7.7 |
| Shaft
length in inches |
23 |
28 |
23 |
28 |
|
Integrated battery |
300 Wh
LIMA |
300 Wh
LIMA |
300 Wh
LIMA |
300 Wh
LIMA |
| Propeller
dimensions in inches |
12 x 10 |
12 x 10 |
12 x 10 |
12 x 10 |
| Propeller
speed at full power in rpm |
max. 720 |
max. 720 |
max. 720 |
max. 720 |
| Control |
Tiller-control |
Tiller-control |
Tiller-control |
Tiller-control |
| Steering |
180°
lockable |
180°
lockable |
180°
lockable |
180°
lockable |
| Tilting
device |
manual |
manual |
manual |
manual |
| Trim
device |
manual,
7-step |
manual,
7-step |
manual,
7-step |
manual,
7-step |
| Stepless
drive forwards/reverse |
yes |
yes |
yes |
yes |
|
Additionally preset speeds |
yes |
yes |
yes |
yes |
Range Examples
Travel 401 with integrated battery (14.8 V / 20 Ah), Inflatable 12ft,
88lbs
| Example of use |
Speed in knots |
Range in nm |
Run-time in hours |
| Full throttle |
3.6 |
2.9 |
0:48 |
| Half throttle |
2.9 |
5.8 |
2:00 |
| Slow speed |
1.8 |
10.8 |
6:00 |
Travel 801 with integrated battery (14.8 V / 20 Ah), Inflatable 12ft,
88lbs
| Example of use |
Speed in knots |
Range in nm |
Run-time in hours |
| Full throttle |
4.6 |
1.9 |
0:25 |
| Half throttle |
3.2 |
3.2 |
1:00 |
| Slow speed |
1.8 |
10.8 |
6:00 |
