Highly efficient and powerful – Torqeedo presents the most powerful 24 V
outboard on the market

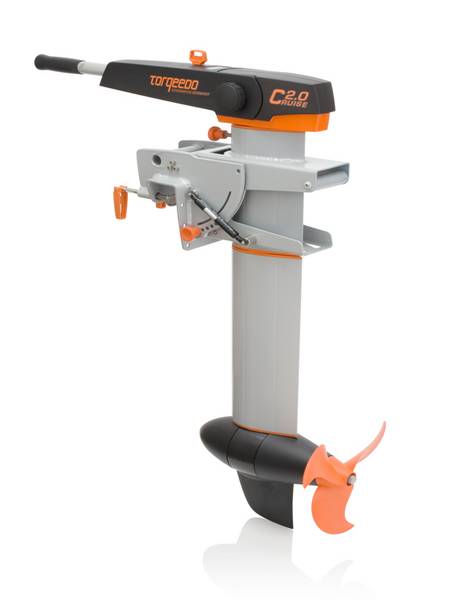

With the thrust force of a 6 HP combustion engine, the Torqeedo Cruise is the
emission-free alternative for sailing and motor boats with displacement of up to
three tons. Equipped with the latest torque technology, an optimized drive train
and an optimized propeller, the Torqeedo Cruise is not only the most efficient
but also the most powerful 24-volt outboard available on the market.
The Cruise gets its energy either from lead batteries that have been
connected in series (normally two 12 V batteries) or from the Torqeedo Power,
lithium-based batteries.
When using lead batteries within the power range of the Cruise, the
efficiency of a drive is important for two reasons. On the one hand, an
efficient drive converts the used energy better
into propulsive force. A high efficiency of the drive additionally ensures that
more battery capacity is available for consumption: The more efficient a drive
is, the more it prevents the effectively available battery capacity from being
reduced due to unnecessarily high power intake (compare here the Background
Knowledge on Calculating the Range of Electric Motors as well as the chapter on
Battery Technology).
Due to the extraordinary efficiency of the Cruise, it wastes comparably
little energy but its input power of 2,000 Watt is challenging to the lead
battery supply. To compensate for the high-current characteristics and the loss
of capacity of lead batteries concomitant to this, it is recommendable that you
purchase lead batteries with comparably „good“ high-current characteristics as
well as high rated capacities (ideally 4,800 Wh, i.e. two times 12 V / 200 Ah or
higher rated capacities; compare Background Knowledge on Calculating the Range
of Electric Motors).
| |
Cruise 2.0 S |
Cruise 2.0 L |
| Input
power in watts |
2,000 |
2,000 |
| Rated
voltage in volts |
24.0 |
24.0 |
|
Propulsive power in watts |
900 |
900 |
|
Comparable gas outboards (propulsive power) |
5 hp |
5 hp |
|
Comparable gas outboards (thrust power) |
6 hp |
6 hp |
| Maximum
overall efficiency in % |
45 |
45 |
| Static
thrust in lbs |
121 |
121 |
| Total
weight in lbs |
40.8 |
41.9 |
| Shaft
length in inches |
24.6 |
29.3 |
|
Integrated battery |
no |
no |
| Propeller
dimensions in inches |
12 x 10 |
12 x 10 |
| Propeller
speed at full power in rpm |
max.
1,020 |
max.
1,020 |
| Control |
Tiller
control |
Tiller
control |
| Steering |
360°
lockable |
360°
lockable |
| Tilting
system |
Gas
pressure spring |
Gas
pressure spring |
| Trim
system |
manual,
5-step |
manual,
5-step |
| Stepless
drive forwards/reverse |
yes |
yes |
Example of Range:
Cruise 2.0 (with 2 x 12 V / 200 Ah lead batteries), Fishing boat 20ft,
1,650lbs
| Examples of use |
Speed in knots |
Range in nm |
Run-time in hours |
| Full throttle |
5.3 |
10.6 |
2:00 |
| Half throttle |
2.6 |
42.9 |
16:30 |
| Slow speed |
1.5 |
165.0 |
110:00 |
