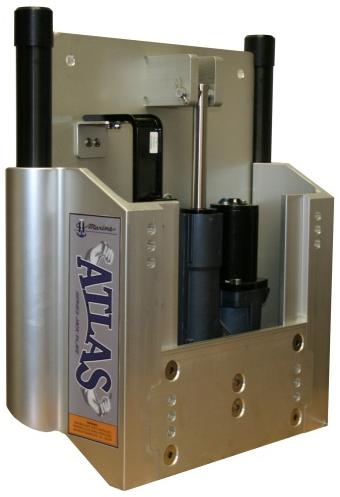

  T&H Marine AHJ10VDP Atlas Hydraulic Jack Plate - 10" Setback
Click to enlarge

T&H Marine AHJ10VDP Atlas Hydraulic Jack Plate - 10" Setback

Item #: THMAHJ10VDP



Quantity:

27%

List Price:

$1,585.29

Price:

$1,151.99



In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

T-H Marine's ATLAS hydraulic jack plate is truly the next generation in jack plate design, built for the heaviest and most powerful V6 engines on the market today, even the big four strokes. Our innovative high tech engineered polymer rod and slot lifting design guarantees trouble free action. This plate also features the newest concept in one-piece hydraulics from the most respected name in hydraulic design, providing the best of all worlds: Speed and Self contained lifting action. This all new pump will lift the heaviest outboard from bottom to top in less than 8 seconds.

  • Self Contained Hydraulic Pump System (No Reservoir or lines to install)
  • Hydraulic actuator is made in the U.S.A.
  • Fast! - Bottom to Top in Less than 8 Seconds
  • Rod and Slot Lifting Design - Trouble Free Lifting Action
  • Hi-Tech Engineered Polymer Rods - 6 Times More Abrasion Resistant than Steel
  • Rods Made from Self Lubricating Material, no grease required
  • Easy Two-Pin Pump Removal - Quick Maintenance
  • Installs in Half the Time of Comparable Jack Plates
  • Can be used for most outboards - 350hp Max
  • All Atlas plates are predrilled for Power-Pole bracket mounting
  • All Digital LED Position Gauge Kits Available - All Atlas' Predrilled to Accept (Gauge Kit)
  • Stroke Length - 5 Inches
  • Height Adjustment Up to 7 Inches
  • Atlas Hydraulic Jack Plate - 10" Setback - Weight 63lbs
