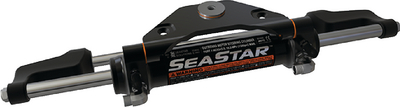

  Teleflex HC5358-3 Cylinder O/B Front Mount Yamaha HPDI & 4ST
Click to enlarge

Teleflex HC5358-3 Cylinder O/B Front Mount Yamaha HPDI & 4ST

Item #: TELHC5358-3



Quantity:

30%

List Price:

$749.69

Price:

$525.99



$5.00 Shipping Available!


In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Updated cylinders fit the same applications as the prior models. Improvements over previous models include: Updated styling, a more robust barrel, new sealing systems and materials with excellent resistance to compression set, and new adjustable stainless steel O-ring fittings (ORB). Front Mount cylinders are balanced and the most commonly used. Recommendations:
  • Single Engines:
    Single Cylinder: 350 HP-Max, 65 MPH-Max HC53xx Cylinder (See note 1)
    Single Cylinder: 350 HP-Max, HC63xx Pro or HC6845S (See note 2)

  • Dual Engine Non-Counter Rotating:
    Single cyl: 450 hp max, 55 MPH max. HC53xx Cylinder, HO60xx Tiebar
    Dual cyl: 600 hp max, 55 MPH max. HC53xx Cylinders, HO60xx Tiebar

  • Dual Engine Counter Rotating:
    Single cyl: 600hp max, 55 MPH max. HC53xx Cylinder, HO60xx Tiebar
    Dual cyl: 600 hp max, 55 MPH max. HC53xx Cylinders, HO60xx Tiebar

  • Triple Engine One with Counter Rotating:
    Dual cyl: 900 hp max, 55 MPH max. HC53xx Cylinder, HO60xx Tiebars
    Triple cyl: 900 hp max, 55 MPH max. HC53xx Cylinders, HO60xx Tiebars

Note 1. SeaStar Solutions has specific steering equipment for boats that are driven aggressively, used in severe conditions or with more than 300 HP per engine.
Note 2. HC63xx PRO Cylinders are designed for all those critical high speed, single outboard boats, such as Bass, Flats & other performance boats capable of speeds in excess of 65 mph. For optimal performance we recommend to combine the use of SeaStar Pro Helms and Hoses for high speed single engine applications.
Before ordering, determine the best application for the boat based on hull design, speed, and usage. For higher speed single engine applications, Seastar recommends the use of Seastar PRO cylinders.

Type: Front Mt.

Description: Yamaha 4-stroke

Mount: Pivot
