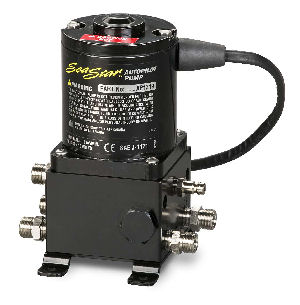

  Teleflex AP1219 Type 1 12V 60CUI/Min Pump
Click to enlarge

Teleflex AP1219 Type 1 12V 60CUI/Min Pump

Item #: TELAP1219



Quantity:

27%

List Price:

$567.92

Price:

$415.99



$5.00 Shipping Available!


In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise.

AUTOPILOT KEY FEATURES

  • Long life DC Motor (i.e. long life brushes)

  • Compact design

  • Simplified installation

  • Low power consumption

  • ABYC, CE's and J1171 compliant

  • Superior corrosion resistance

  • Quiet operation

  • All mounting bracket displacement included

Voltage

12 volt

Fittings

Compatible w/ Standard Seastar Hose - Thread 9/16" X 24 UNEF

Wire Details

Length

24"

Gauge

12 awg

Connector

None - Bare Leads

Oil Compatibility

Seastar Steering Fluid (MIL 5606)

Pump Sizes

Type 1: 60 in3/min (no-load)

Type 2: 100 in3/min (no-load)

Maximum Pressure

1000 psi

Typical Current Draw

12V Type 1: 4 ? 8 amps

(Depending on Application)

12V Type 2: 5 ? 11 amps

Ram Capacity

Type 1

4.9 in3 - 14 in3
