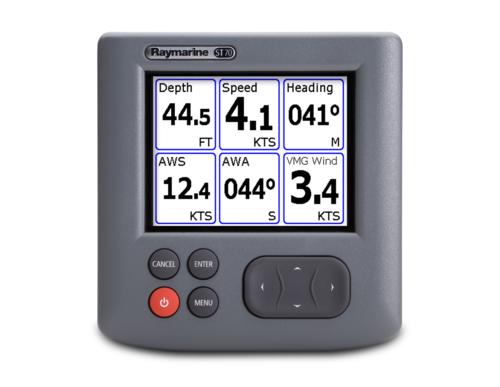

The Raymarine ST70 Multifunction Color display offers a brand new way of
visualizing instrumentation and navigation data. Designed for simple setup and
extensive user customization, ST70’s capabilities include depth, speed, wind,
navigation data, autopilot status, engine monitoring and more.Built on a waterproof (CFR46), rugged chassis, ST70 has sunlight
viewable 3.5” TFT color LCD display with 320 x 240 pixel resolution. The
display has high contrast and a very wide viewing angle for easy visibility from
anywhere in the cockpit or pilothouse. ST70 offers selectable day and night
mode color pallets for optimum viewing under all conditions.
Raymarine ST70 displays can be surface mounted (like ST60+) or low
profile mounted to match Raymarine C-Series, E-Series and marine displays.
Engineered for today and the future, Raymarine ST70 systems are built on
Raymarine’s new SeaTalkng Next Generation data bus
architecture. The SeaTalkng data bus enables simple
interconnection of multiple ST70 instruments, transducers and NMEA2000
compatible devices. ST70 can also integrate with existing Raymarine SeaTalk and
SeaTalk2 systems.
The ST70 Multifunction Color Instrument includes a snap-on sun cover,
surface and flush mounting kits, mounting hardware, SeaTalkng
backbone cable, SeaTalk adapter cable, and instructions. To build a
complete ST70 instrument system choose from our complete line of ST70 transducer
pods and SeaTalkng networking components (sold
separately.)
ST70 General Features Include:
- Fully customizable displays for depth, speed, wind, navigation data,
engine data and more.
- Full color graphical displays, virtual analog displays and histograms.
- 8 user defined instrument data pages.
- 16 screen layout options available for each data page.
- Each page can be customized and turned on/off as required.
- Start-up wizard helps you to automatically configure each ST70 display
in the system.
- Eleven languages available: UK English, US English, Spanish, French,
German, Dutch, Italian, Swedish, Danish, Norwegian and Portuguese.
- Easy-to-use carousel menu makes setup easy.
- Sunlight viewable TFT color display.
- 89mm (3.5") 320 x 240 pixel resolution (QVGA).
- High contrast display with wide viewing angles.
- Day and Night mode colour palettes.
- Fully waterproof to CFR-46 standard.
- Low profile flush mount or surface mount with supplied adapter to match
ST60+ instruments, multifunction displays, marine displays and more.
- Same footprint as ST60+ instruments.
- Can easily be retrofitted to ST60 surface mount installations.
- Compatible with SeaTalk, SeaTalk2, SeaTalkng
and NMEA 2000 devices.
- Each ST70 instrument is supplied with a first generation SeaTalk adaptor
cable for plug and play connectivity with ST60/ST60 Plus instruments.
- ST70 intelligently converts first-generation SeaTalk data to SeaTalkng.
Speed Mode.
- VMG (Velocity made good) to Waypoint and VMG to Waypoint Log.
- Speed and Speed Log.
- Maximum Speed and Average Speed.
- VMG Windward.
- Log and Trip.
- Race Time, Local Time and Local Date.
- Stopwatch.
Depth Mode
- Depth (feet, fathoms or meters).
- Depth log.
- Minimum depth.
- Maximum depth.
Heading Mode
- Heading
- Heading Log
- Locked Heading.
- Tack Heading.
- CMG (Course Made Good).
- Average course error.
- Average heading.
Wind Mode
- Apparent wind speed and apparent wind angle.
- True wind speed and true wind angle.
- GWD (Ground Wind Direction).
- Beaufort scale.
- Cardinal.
- Wind speed log and wind direction log.
- Minimum and maximum apparent wind speed.
- Minimum and maximum true wind speed.
Engine Data Mode
- Engine RPM.
- Fuel flow and fuel level.
- Battery voltage and battery voltage log.
- Battery Amps and temperature.
- Engine hours.
- Trim position.
- Oil pressure and oil temperature.
- Coolant temperature and pressure.
- Boost pressure.
Environmental Data Mode
- Sea temperature.
- Barometric pressure and barometric pressure log.
- Sunrise and sunset.
- Sea temperature (minimum and maximum).
- Air temperature and air temperature log.
- Air temperature (minimum and maximum).
| |
CE |
conforms to 2004/108EC,
EN60945:2002 |
|
| |
Connectors |
2 SeaTalkng connectors |
|
| |
User Instrument Page
options |
8 |
|
| |
User Page layout options |
16 |
|
| |
Depth |
depth; depth Log; minimum
depth; maximum depth |
|
| |
Speed |
VMG to waypoint; VMG to
waypoint log; speed; speed Log; maximum speed; average speed;VMG
windward; log; trip; local time and date |
|
| |
Wind |
AWS; AWA; TWS; TWA; GWD;
Beaufort; cardinal; wind speed log; wind direction log; AWS maximum;AWA
maximum; TWA maximum; TWA minimum; TWS maximum; TWS minimum |
|
| |
Compass |
heading; heading log;
locked heading: tack heading; average heading |
|
| |
Navigation |
BTW, XTE, ETA; TTG, CMG;
DMG; DMG and CMG, DTW |
|
| |
GPS |
COG, SOG, COG Graph, SOG
Graph, COG and SOG; Lat and Long; satellites; satellites and HDOP |
|
| |
Engine |
engine RPM; fuel fl ow;
fuel level; engine hours: fuel economy; average fuel rate, coolant
temperature, oil pressure; oil temperature; boost pressure; battery
temperature; coolant pressure; trim position |
|
| |
Battery |
battery voltage; battery
amps, battery temperature, unit voltage graph |
|
| |
Environment |
sea temperature; barometric
pressure; barometric pressure log; sunset & sunrise; maximum sea
temperature: minimum sea temperature; sea temperature graph, set and
drift; air temperature; air temperature log; maximum air temperature;
minimum air temperature |
Requires Airmar weather
transducer. |
| |
Alarms |
depth, wind, speed,
temperature, off course, battery volts, last fix, waypoint arrival, MOB |
|
| |
Operating temperature range |
-10°C to +70°C |
|
| |
Storage temperature range |
-20°C to +70°C |
|
| |
Humidity |
up to 95% |
|
| |
Waterproofing standard |
CFR46 |
|
| |
Languages |
UK English, US English,
Spanish, French, German, Dutch, Italian,Swedish, Danish, Norwegian.
Portuguese |
|
| |
Interfaces |
SeaTalkng, NMEA 2000,
SeaTalk, SeaTalk2 |
|
| |
Overall dimensions (WxHxD)
mm |
110x115x24 |
|
| |
Product weight kg (lbs) |
0.27 (0.6) |
|
| |
Mounting method |
low profi le fl ush or
surface mount |
|
| |
Control type |
4 buttons plus multi
directional trackpad |
|
| |
Display size and type |
89 mm (3.5") sunlight
viewable QVGA (320x240 pixels) Colour Transfl ective TFT |
|
| |
Colour palettes |
day and night modes |
|
| |
Display lighting |
White LED, sliding scale |
|
| |
Absolute voltage range
(volts DC) |
9 – 16 volts |
|
| |
Power consumption (typical)
mA |
220mA |
|
