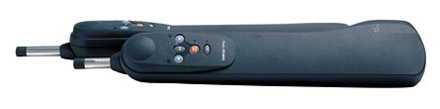

  Simrad TP32 Tiller Pilot
Click to enlarge

Simrad TP32 Tiller Pilot

Item #: SIMTP32



Quantity:

Minimum advertised price:

$699.00



Free Shipping Available!

Add to Cart =>

In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Thanksgiving Sale! Save until November 27th or while supplies last!

Simrad TP32 Tillerpilots

For Yachts up to 39ft - Simrad Tillerpilots are designed for high precision, reliable autosteering while drawing low current to optimize battery life.

High performance for small to mid range sailboats Simrad Tillerpilots are designed for high precision, reliable autosteering while drawing low current to optimize battery life. The hard wearing, waterproof body contains all controls and has been tested for many hours in total immersion. Exceptionally quiet in use, the Tillerpilot gives fast and positive performance for effective steering in a wide range of sea states and wind conditions. A range of pilots offers performance to suit most small to medium sailboats.

The Simrad TP22 and Simrad TP32 Tillerpilots offer easy interfacing to external devices using Simrad?s propriety network system, SimNet. When interfaced, enhanced options such as sail to wind or sail to waypoint are easily accessed via the key pad. The recommendations assume typical coastal sailing conditions and in circumstances where extended voyages or more extreme weather conditions are expected, the choice of a higher specification pilot is recommended including the full range of Simrad below deck pilots.

  • Waterproof sealing for protection of the elements and reliable use
  • Extremely quiet, enjoy the silence of sailing
  • SimNet compatible, simple plug and play DIY installation
  • Easy operation

AUTOPILOT / AUTOSTEERING

Peak Thrust 85kg
Max Boat Displacement 6.3 tons
Max Boat Length 12 m \ 39 ft
Drive System Recalculating
Intelligent Steering Action Yes
Fluxgate Compass Yes
Mounting Selectable Port Or Starboard Yes
Steer To GPS Yes
Steer To Wind Yes

NETWORKING / CONNECTORS

NMEA 0183 Input Yes
SimNet Control Yes

POWER

Power Supply 12Vdc vDC
Power Consumption Auto 0.05A
Power Consumption Standby 0.06A

OTHER

Adjustable Gain Yes
Alarm: Audible and Visible Yes
Auto Seastate Yes
Auto Trim Yes
Automatic Tracking Yes
Gain 1-9
Night Illumination Yes
Non Volatile Memory Yes
Operating Temperature -10? to +55?C
Operating Temperature Stored -10? to +55?C
Remote Control Option Yes
Storm Proof Yes
