  Simrad Xsonic SS260 50/200KHZ 9-PIN Connector Depth/Temp
Click to enlarge

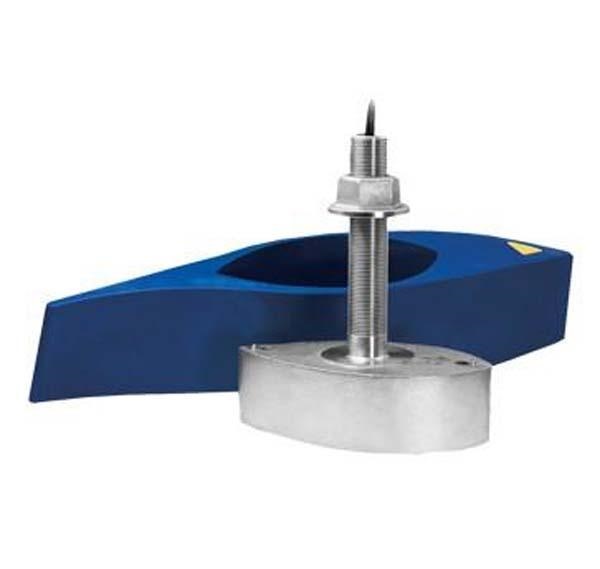

Simrad Xsonic SS260 50/200KHZ 9-PIN Connector Depth/Temp

Item #: SIM000-13783-001



Quantity:

20%

List Price:

$1,149.00

Price:

$920.99



Free Shipping Available!


Usually ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Simrad SS260 Xsonic 50/200Khz 1kw Stainless Steel Thru Hull

Model: 000-13783-001
  • The 1kW transducer is perfect for fast, sportfishing vessels that can install a thru-hull transducer with a fairing.
  • Excellent for deep water bottom and structure fishing up to 500m/1640ft.
  • Calculate depth and temperature from one compact sensor.
  • Provides extremely accurate echosounding data, even at speeds of over 30 knots.
  • The narrow, 6° beam 200 kHz ceramic offers excellent resolution and and crisp image detail for bottom fishing. The seven-element 50 kHz array has a wider 19° beam for deepr blue-water fishing.
  • Built to withstand the environment.

The SS260 is a stainless steel, 1kW RMS, thru-hull, 50/200 kHz depth and temperature sensor. Ideal for fishing in shallow, medium and deep waters.

Specifications
Frequency50/200 kHz
Power rating1kw
Speed sensorno
Temperature sensorYes
Mounting styleStainless Steel Thru-hull
Beamwidth50 kHz—19°, 200 kHz—6°
Cable length10 meter
Connector9-pin connector

What's in the Box:
  • SS260 50/200Khz
  • Fairing block
