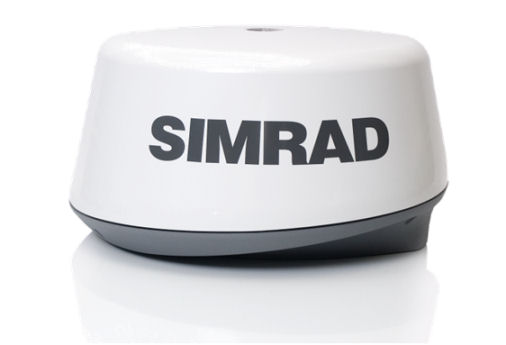

Simrad Broadband Radar
A revolutionary new advanced Broadband Radar technology is available for a
range of popular navigation systems, integrating superior radar performance with
state-of-the-art charting, echosounding and entertainment displays.
Combine straightforward installation (with an easy-to-route 13.5mm diameter
scanner cable), flexible antenna placement options and low power draw, and there
is a clear choice for every type of vessel.
Unparalleled Short Range Target Discrimination - Where it Matters Most
Simrad's Broadband Radar provides amazing target resolution, even at an
unprecedented 1/32 nm range. Docks, channel markers, moored vessels and other
critical targets are displayed with clarity and separation, for added confidence
in close quarters. Broadband Radar™ technology also eliminates the "main bang"
of a pulse radar — the obscured "dead zone" immediately around the vessel —
which interferes with close target detection.
Lowest RF Transmission for Safe, Flexible Installation
Because Simrad Broadband Radar transmits at 1/20,000 the power of typical
pulse radars (emitting 10 times less energy than an average cell phone), the
radome is safe to mount in locations never before possible. In addition, the
lowest DC power draw of any X-band marine radar makes this system ideally suited
for sailboats and other vessels with limited power.
Navigation in an Instant
No more waiting 2-3 minutes for a magnetron to warm up - 100% solid-state
design provides InstantOn capability. When darkness falls or the fog rolls in,
you will always be ready. Ideal for sailboats wishing to save power, or boats at
anchor not wishing to run the radar continuously.
A Truly Different Technology
Traditional "pulse" radars use high-powered magnetrons to generate microwave
signals with very short pulses of applied voltage. The first solid-state X-band
radar technology has been developed, which utilizes FMCW techniques.
Simrad Broadband Radar sends a continuous transmission wave with linear
increasing frequency (hence the term Broadband). The wave retains its frequency
as it travels out and reflects back from any objects. Meanwhile, the transmitter
continues to output an increasing frequency. The difference between the
currently transmitted and received frequencies, coupled with the known rate of
frequency increase, is the basis for precisely calculating a "time of flight"
and target distance. Since FMCW constantly builds up radar return energy (vs. a
single pulse), this system provides target detection superior to pulse radars
while transmitting at far lower energy levels.
- The exclusive technology and performance characteristics of Broadband
Radar make it an ideal match for almost any vessel.
- Unparalleled short-range resolution and discrimination; an ideal
compliment to large radar systems on yachts.
- User-friendly operation makes it an ideal primary radar for small to
medium-sized vessels.
- Small size, minimal power requirements, safer transmission energy
levels; the advantages of sophisticated radar for all boats
| Harbor / Marina |
Boats & docks separated due to superior target definition |
Superior short-range target discrimination clearly shows docks, boats
and moored vessels. |
Inferior separation of boats, docks and other features, further obscured
by “main bang” (where it matters most) closest to the vessel |
| Channel |
Approximate position of boat |
Broadband Radar clearly defines this narrow 35-meter channel, shows a
small vessel moored near shore and a small footbridge. |
4 kW HD pulse radar can not discriminate moored vessel from
shoreline,“main bang” obscures width of channel. |
| Pile Moorings |
 |
Broadband Radar clearly shows staggered mooring poles, differentiating
moored vessel. |
Poles and vessel unclear on pulse radar display. |
- Crystal clear image of your immediate surroundings
- Easier to use for both experienced and novice navigators
- First radar with no radiation hazard
- InstantOn with no tuning required
- Low power consumption, ideal for yachts
Compatible Products:
- Simrad GB40
- Simrad NX40
- Simrad NX45
|
