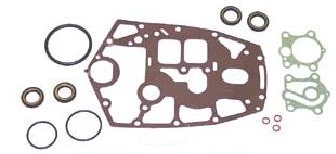

  Sierra 18-0024 Yamaha 689-W0001-21-00 Gear Housing Seal Kit
Click to enlarge

Sierra 18-0024 Yamaha 689-W0001-21-00 Gear Housing Seal Kit

Item #: SIE18-0024



Quantity:

33%

List Price:

$62.99

Price:

$41.99



More coming soon - Pre-order today.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Sierra Yamaha Gear Housing Seal Kit

Replaces: 689-W0001-21-00
For: E48 (1995-00), C55 (1989-94)

Contains:

Part # Description O.E. # Quantity
18-0292 Gasket 663-44315-A0 1
18-0294 Gasket 663-44324-Ao 1
18-0297 Drive Shaft Seal 93101-23070 2
18-0296 Propshaft Seal 93101-22067 2
18-0298 O-Ring 93210-41042 1
18-7160 O-Ring 93210-66M98 1
18-4698 Drain Plug 90430-08020 3
