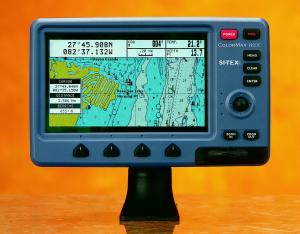

The new SI-TEX ColorMax Wide LCD C-MAP NT+ Charting System features high-speed processor, GPS WAAS positioning, and programmable GuardianÖ Grounding Alarm. The ColorMax Wide has a 7" color active matrix LCD in the latest panoramic 16:9 aspect ratio, with 480 x 234 pixel resolution plus adjustable brightness and contrast with backlighting. Newly designed high-speed processor with INTEL XSCALE Architecture gives you instant screen changes. Built-in GPS WAAS 18-channel receiver will put your boat within 3 meters of your waypoint in most situations (available with internal or external antenna). GuardianÖ Programmable Anti-Grounding feature lets you know if your current course takes you within preset distance of charted shoals, obstructions or other areas where the water is too shallow for your vessel's draft. Depth Graph feature accepts input from onboard sounder or optional Active Transducer to display graphic presentation of vessel's current depth and recent depth history. Split-screen displays. North-up or Track-up modes. Stores up to 500 waypoints or marks, 25 routes and 1000 track points. Built-in worldwide background chart. Tide Info feature uses local C-Card information to calculate tide graph for local ports. Find Function uses local C-Card to locate nearest boatyard, bank, even the closest shower. Joy stick pointing device controls on-screen cursor to plot, scroll, pan, and zoom from vast sea areas to harbor charts. Softkeys and comprehensive on-screen menu for easy access to all system features. Displays wind data when connected to wind instrument through NMEA-0183 interface. GOTO and MOB functions. Four selectable languagesùEnglish, Italian, French and Spanish. Coordinates displayed in Lat/Lon, Loran TD's, UTM or OSGB. Data can be downloaded onto optional C-MAP NT+ C-Card memory cartridges. NMEA-0183 dataport for interfacing data with other on-board electronics. Weatherproof construction. Quick-release snap mount, surface mount kit and protective cover included. GuardianÖ Grounding Alarm* feature continuously scans the electronic chart data in front of the boat to detect charted rocks, shoals, obstructions and land areas that could pose a threat if the vessel were to continue along its current course. The area searched is user-definable and is identified by a triangle on the screen. Triggering timely and clear alarms. Optional Active Transducers add Depth Graph feature which allows you to display graphic presentation of vessel's currentdepth and recent depth history. Multiple housing mounting options available | SI-TEX ColorMax Wide ELECTRONIC CHARTING SYSTEM- Specifications | | Power Requirement | 10 -35V DC | | Power Consumption | 8W | | Display Screen | 7" (diagonal) active matrix color LCD panoramic 16:9 aspect ratio | | Display Resolution | 480 x 234 pixels | | Keypad | Silicon rubber, backlighted | | Cartography | Single slot for C-MAP NT+ C-Card cartridge | | Memory | Non-volatile, battery backup | | Waypoints/Marks | 500 | | Routes | 25, reversible | | Track Plots | 1000 | | Type of User Points | 16 | | Plotting Intervals | Distance: 0.01, 0.05, 0.1, 0.5, 1, 2, 5, 10 NM
Time: 1, 5, 10, 30 sec., 1 min. | | Depth Unit for Depth Line | MT, FT or FM | | Operating Temperature | 32¦ to 131¦ F | | Cartographic Functions | Worldwide chart coverage, Depth, Distance & Speed unit selection, Built-in Continental cartography, Coordinates System (Lat/Lon, UTM, OSGB, TD), Map datum, Data window mode, Display mode (full, simple fishing, low, custom). Marine: Names, Nav-aids, Light Sectors, Attention Areas, Tides & Currents, Seabed Type, Ports & Services, Tracks & Routes. Depth: Depth Areas, Depth Areas Min/Max. Depth Lines & Soundings Min/Max. Land: Natural Features, Rivers, & Lakes, Cultural Features, Landmarks. Chart: Lat/Lon Grid, Chart Boundaries, Cartography, Mixing Levels, De-clutter, Map Presentation | | Fix Functions | Fix correction (manual or automatic), Display Headings True or Magnetic, Map Orientation (North-up or Track-up), DGPS, WAAS, EGNOS, Fix Datum, Compass Calibration, Position Filter, Speed Filter, Static Navigation, Magnetic Variation user selection | | Report Functions | Route data report, Depth Graph, Depth Graph Full, Navigation data (allows selection of CDI Scale and Navigation Page fields), 3D Road, GPS Status, GPS Data, User Points List, About | | Special Functions | Estimated time of arrival, Navigation Destination, Navigation data display: L/L, COG, SOG, BRG, XTE, TTG. Automatic info on cartographic objects and user points. Simulation: Speed, Heading, Date, Time Cursor Control, Simulation On/Off. Alarms Handling: Arrival Alarms, XTE Alarms, Anchor Alarm, Depth Alarm, Grounding Alarm, Grounding Depth Limit, Grounding Alarm Range. Download capability to C-MAP NT+ user cartridge. R/B Function, MOB, Multi-windows option, Ports & Services, Tide Stations, Wrecks, Obstructions, C-STAFF, C-Forecast, Keypad Beep selection, Data & Time Setup (local, UTC), Altitude Unit (FT, FM, MT), Distance Unit (KM, NM, SM), Speed Unit (MPH, KTS, KPH), Nearest Services | | Input/Output Format | NMEA-0183 Ver 2.0 | | Case Dimensions | 9.5"W x 5.9"H x 2.6"D | | Weight | Approx. 2 lbs. | | GPS/WAAS RECEIVER | | Receiver | L1, C/A Code | | Channels | 18 | | Accuracy | Better than 3m, 95% of the time | | Max. Solution Update Rate | 10/sec | | Cold Start (Average) | <45 secs | | Warm Start (Average) | <40 secs | | Hot Start (Average) | <8 secs | | Antenna | Available with Internal or External | | Cable Length | 33 ft. | IMPORTANT NOTICE: SI-TEX Electronics Charting Systems and C-MAP NT+ Navigation Charts are not designed to replace
standard government charts. Any electronic navigation device should be operated along with the prudent use of reliable manual
backup material. Note: Accuracy is subject to change in accordance with DOD civil GPS user policy.
| *GuardianÖ feature should be used as a tool in conjunction with other navigation such as Depth
Sounders, Charts and Visual Sighting, and should not be relied upon as the sole means of navigation.
| | Specifications subject to change without notice. |
|
