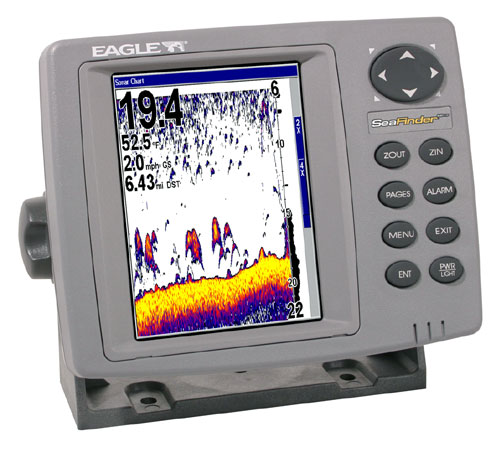

Amazing, high-definition, 640Vx480H pixel, 256-color, sunlight-viewable TFT
display! Deep 50/200 kHz dual-frequency operation gives you the power for
saltwater and Great Lakes operation! Includes water temp/trolling speed/distance
readings!
FeaturesDisplay:
- Ultra-bright, 5" (12.7 cm) diagonal screen
- 256-color, active matrix TFT LCD
- High-definition 640Vx480H resolution
- Fluorescent cold-cathode backlit screen and keypad
- Unique Resize Window to adjust split-screen display
- Overlay Data feature displays select digital readings over the sonar
graph
Sonar:
- Depth capability to 1500 ft* (457 m) with 4000 watts of peak-to-peak
power (500W RMS) at 50kHz
- High-performance, low-profile 50/200 kHz Skimmer® dual-frequency
transducer with built-in temp sensor delivers an extra wide angle of fish
detection area with high sensitivity settings - Operates at boat speeds up
to 70 mph (61 kts) - Variety of other transducer purchase options available
- SP-U transom-mount sensor included for precise trolling speed/distance
log readings
- Adjustable ping speed with automatic HyperScroll™ to display fish
targets at higher boat speeds
- Choice of six color display modes to match outdoor light conditions, and
to help reveal fish hidden in underwater cover
- FasTrack™ vertical bar flasher displays real-time sonar returns and
relative strength of each target
- Advanced Signal Processing (ASP™) automatically adjusts your settings
for the best sonar picture
- COLORLINE™ separates fish from nearby structure and bottom, and helps
define bottom composition and hardness
- Advanced Fish I.D.™ shows underwater targets in different sizes of fish
symbols
- FishTrack™ displays target depth readings above fish symbols
- Surface water temperature readings come from a built-in temp sensor in
the transducer
- Zoom with zoom bottom tracking
- Selective on/off sonar alarms: Shallow, Deep, Fish and Zone
Performance:
- Instant screen updates during depth range changes for uninterrupted
viewing
- Internal back-up memory for key sonar settings
- Rugged, reliable, completely sealed and waterproof casing, even for use
in harsh saltwater environments
- Full one-year warranty
* Actual depth capabilities depend on transducer configuration and
installation, bottom composition and water conditions. All sonar units typically
read deeper in fresh water than salt water.
|
