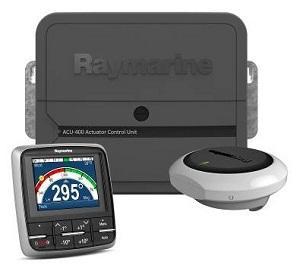

  Raymarine EV-400 Sail Autpilot Requires Drive Unit
Click to enlarge

Raymarine EV-400 Sail Autpilot Requires Drive Unit

Item #: RAYT70161



Quantity:

Minimum advertised price:

$2,999.99



Free Shipping Available!

Add to Cart =>

In Stock - Ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

Thanksgiving Sale! Save until November 27th or while supplies last!

EV1 Sensor Core

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems.

SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

ACU-400

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.

p70 Autopilot Control Head (Sail)

The p70 autopilot control head is a push-button operation controller designed primarily for sailboats. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.

The p70 control head also features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.

Evolution Cabling Kit - R70160

The Evolution SeaTalkng cable kit contains:

  • 1 x SeaTalkng Power Cable (0.4m)
  • 1 x SeaTalkng Backbone Cable (5m)
  • 1 x SeaTalkng Spur Cable (0.4m)
  • 1 x SeaTalkng 5-way Connector Block
  • 2 x SeaTalkng T-piece Connector
  • 2 x SeaTalkng Terminator

No calibration required!

Engineered for simplicity, Evolution autopilots eliminate the need for complicated set up and calibration. Once Evolution is installed, getting started is as easy as switching the autopilot on.

Thanks to the intelligent EV sensor core, the autopilot automatically evolves and adapts to your vessel?s steering characteristics without any user adjustments.

Evolution AI

The culmination of Raymarine?s 30 years of autopilot expertise, FLIR Systems research and development, and advanced aerospace guidance technology, Evolution AI? control algorithms deliver a new level of accurate autopilot control.

This innovative breakthrough in autopilot intelligence enables Evolution autopilots to perceive their environment and then instantly calculate and evolve steering commands to maximise performance. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.

The EV Sensor Core

At the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

Designed for mid-size power vessels
