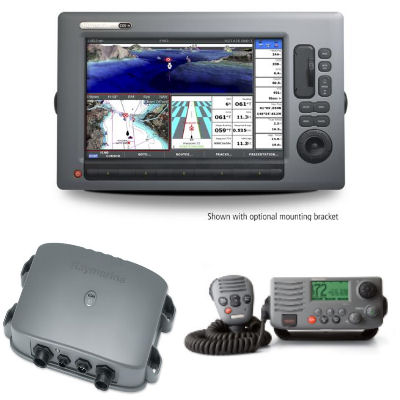

Raymarine C120W System Package C120W/DSM30/RAY55

DSM30 HD Digital Sounder Module

• Digital Sounder Module adds HD Digital technology to Raymarine E-Series and C-Series multifunction displays
• 600 Watt operation
• Dual frequency 50/200 kHz
• Patented Raymarine HD Digital sounder technology

Integration Capabilities

E-Series SeaTalk hs network integration (optional SeaTalk hs crossover coupler or SeaTalk hs Network Switch is required)
C-Series integration hsb2 networking compatible with "Plus" series radars, chartplotters and fishfinders.The DSM30 is designed for 12V DC electrical systems only. For 24V DC systems, please use the DSM300.

Echo Sounder Features

• Dual frequency operation (200/50 kHz)
• 600 watt available output power
• HD Digital Auto Adaptive Gain control (no adjustment required)
• Patent Pending Digitally Adaptive Transmitter Receiver with infinite receiver bandwidth settings and digital filter
• A-Scope (Real-Time Display): Split second real time representation of fish and bottom features passing through the beam of your transducer right now, the history of your A-Scope is represented in the standard sounder image scrolling across your screen.
• Zoom Display: Auto or manual zoom magnification of any part of the 200 or 50 kHz fishfinder screen image, (X 2, X4 or X6 magnification).
  Bottom Lock: The bottom lock feature, shows the bottom as a straight line, in order to help you detect fish close to the bottom and remove wave action from the fishfinder image.
• White Line: The White line feature helps distinguish between fish and the bottom, when fish are swimming close to the bottom

RAY55 VHF

The Raymarine Ray55 VHF radio packs a whole host of powerful features into a radio that?s compact, rugged, submersible (IPX7) and reliable.

Ray55 offers easy-to-use rotary controls for volume, squelch and menu operation and an extra large LCD display with dual channel mode that displays both the active and standby channel simultaneously. The standard microphone includes integrated controls for channel selection as well as a built-in speaker. The Ray55 is also expandable to 2 stations using the optional Raymic Full Function Handset (sold separately.)

Ray55 features Class D digital select calling with a built-in DSC distress key for 1 touch digital broadcast of your boat?s GPS position and digital mayday. Ray55 also makes sure you?ll hear and be heard, loud and clear with 25 watts of transmitter power, a superior receiver with excellent noise rejection, and best-in-class audio output and a standard external speaker connection. Four scan modes and NOAA weather alert are included.

The Ray55 VHF Radio kit includes radio, microphone, sun cover, yoke mounting bracket, power/speaker/data cable, mounting hardware and instructions. An optional in-dash flush mounting kit is available separately.
