No wires, no plugs, the S1000 utilizes the latest in wireless
technology for reliable and convenient autopilot control. Outfitting a boat with
the SmartPilot is easy; simply install the S1000 course computer and hydraulic
pump. Everything you need to install is included in the SmartPilot S1000 box,
including fittings, hoses and tools.
Key features of the S1000 Autopilot system include:
- Wireless autopilot control from up to 32 feet from the base station.
- Smooth course changes regardless of boat speed.
- Automatic steering of fishing patterns
- Intuitive, menu driven interface
- Easy installation, designed for the do-it-yourselfer.

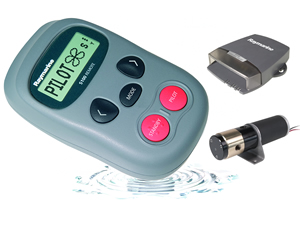

Designed for hydraulically steered vessels up to 25 feet in
length, the S1000 autopilot system system consists of the following components:
S100 Wireless Controller
- Two line display with a graphical autopilot status indicator
- Crisp, high contrast 24 x 127 dot matrix display
- Backlit display
- Raised profile on Standby button for easy identification in the
dark
- Keylock security
- Convenient replaceable AAA alkaline batteries
|
|
S1000 Autopilot Course Computer
- Rugged, compact autopilot "brain" with SmartSteer™ technology
- No compass or rudder reference unit required making for fast and
easy installation
- SeaTalk and NMEA 0183 Interfaces for connection to GPS** and
instrumentation.
**A SeaTalk or NMEA 0183 compatible GPS receiver (sold separately)is
required for autopilot operation.
|
|
SmartPilot Hydraulic Pump
- Compact, high performance hydraulic autopilot drive.
- Designed for SeaStar hydraulic steering systems with a capacity
of 5 to 8 cubic inches (80 to 130 cubic centimeters)
- Includes hydraulic adapters, hoses, and hardware for fast,
simple installation.
|
|
|
The Angler's Copilot
Engineered for the sport fisherman the SmartPilot S1000
is a valuable weapon in the hunt for fish. Delivering optimal trolling
speed control, the S1000 automatically steers in figure eight,
cloverleaf and zigzag patterns, maximizing coverage of your favorite
fishing grounds.
Navigate
Select a waypoint destination on your chartplotter and
let the S1000 navigate your course. Both NMEA 0183 and SeaTalk®
compatible the S1000 easily interfaces to a long list of fixed mount and
handheld GPS devices. The easy-to-read display provides autopilot status
and wireless signal strength. An intuitive menu structure and SmartPilot
AutoLearn technology makes operation and calibration easy.
SmartSteer™
Raymarine SmartSteer™ technology eliminates the need for
remotely mounted rudder feedback and compass sensors assemblies. Thanks
to SmartSteer™ technology the S1000 controls the proportional rate of
turn relative to vessel speed, ensuring smooth and accurate helm control
at both trolling and cruising speeds.
| GPS Waypoint Tracking: Using the output of
your SeaTalk or NMEA 0183 GPS, the S100 will steer to a single
waypoint, or follow an entire route point-to-point. |
|
| Circular Orbit: Using a center point from
your GPS, command the S1000 to maintain an orbit around your
favorite fishing hot-spot. |
|
| Cloverleaf: Make repeated passes over a
central point. Let the S1000 keep you on station while you hunt
for the big ones. |
|
| Zig Zag: Fish down a line of bearing with
the S1000's zig zag pattern. The random course changes make your
bait look more realistic and tempting. |
|
|
| |
|
AutoLearn Calibrations |
Yes |
|
Autopilot alarms |
Yes, drive stopped, off course |
|
Autopilot status repeated on instruments |
Yes, via SeaTalk |
|
Damping |
9 levels, via S100 control
head |
|
Data
alarms |
Yes, shallow depth, waypoint
arrival, loss of GPS fix |
|
Direction to steer arrows |
Yes, via S100 control head |
|
Extra Loud external alarm |
Yes, via optional E85001
interface box on SeaTalk |
|
Fishing patterns |
Yes, ZigZag, Cloverleaf and
Figure Eight |
|
Gain
Control |
9 levels, via S100 control
head |
|
Multiple control displays |
Yes, via SeaTalk |
|
Response |
9 levels, via S100 control
head |
|
SmartSteer |
Yes |
|
Steer to GPS or Waypoint |
Yes |
|
| |
|
Peak
Flow Rate |
800 cc/min (no load) |
|
Steering Ram Capacity |
5-8 Cubic inches (80-120 CC) |
|
Steering Type |
Hydraulic
|
|
Vessel Size and Type |
Sport-fishing boats up to 25
feet |
|
| S100 Wireless Controller Specs |
| |
|
Approvals |
EMC, FCC, IC and CE marked |
|
Control Type |
5 buttons |
|
Display lighting |
Yes, on/off control |
|
Display size & type |
9 x 35mm LCD |
|
Humidity |
Up to 95% |
|
Interfaces |
SeaTalk interface. NMEA 0183
interface via SeaTalk conversion at base station |
|
Maximum character size |
8mm |
|
Mounting Methods |
Cradle, handheld, laynard,
belt clip |
|
Operating temperature range |
14° to 158° F (-10° to 70° C) |
|
Overall Dimensions (L x W x D) |
3.94" x 2.36" x 1.38" (100 x
60 x 35mm) |
|
Power |
2 AAA alkaline batteries |
|
Product Weight |
2.11 ounces (.06 Kg) |
|
RF
transmitter and receiver type |
IEEE 802.15.4 |
|
Storage temperature range |
14° to 158° F (-10° to 70° C) |
|
| S1000 Course Computer Specs |
| |
|
Approvals |
EMC, FCC, IC & CE marked |
|
Drive unit |
Hydraulic |
|
Humidity |
Up to 95% |
|
Interfaces |
1 NMEA 0183 in, 1 NMEA 0183
out, 1 SeaTalk |
|
Mounting methods |
Surface |
|
Operating temperature range |
14° to 158° F (-10° to 70° C) |
|
Overall Dimensions (L x W x D) |
6.7" x 6.5" x 1.73" (170 x 165
x 44mm) |
|
Power |
10-16 volts DC (12 volts DC
nominal) |
|
Product weight |
14 ounces (400g) |
|
RF
transmitter and receiver type |
IEEE 802.15.4 |
|
Storage temperature range |
14° to 158° F (-10° to 70° C) |
|
Waterproofing standards |
Water resistant |
|
|
