S100 Wireless Autopilot
Remote
Compact and lightweight, the S100 remote delivers
the freedom of wireless control to any Raymarine SeaTalk® autopilot. The bright
display is easy to read with two lines of text and a graphical autopilot mode
indicator. The 5 button ergonomic keypad and intuitive menu structure provides
simple operation and easy access to extended features. Rugged and waterproof the
S100 fits in your pocket or clips to your belt, keeping full function autopilot
control always within reach.
|
S100 Features
- Two line display with a graphical
autopilot status indicator
- Crisp, high contrast 24 x 127 dot
matrix display
- Backlit display
- Raised profile on Standby button for
easy identification in the dark
- Keylock security
- Convenient, replaceable AAA alkaline
batteries
|
|
|
Wireless Features
- Up to 32 feet (10 meters) wireless
operating range from the base station
- Signal strength indicator
- Warning signaled when the remote is
out of range of the base station and automatically drops autopilot
to standby\
- Pre-registered – each unit leaves
the factory already registered to the base station
|
|

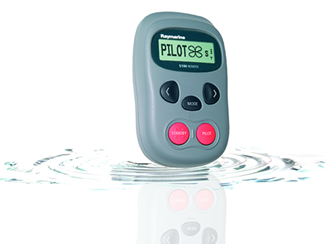

S100 Wireless Autopilot Remote
(L to R: S100 Remote, Wireless Base Station linked to SeaTalk
Autopilot System)
Upgrading your autopilot to wireless
is fast and easy thanks to SeaTalk networking. Simply connect the
wireless base station into your existing SeaTalk network, and you're
done!
|
UpgradeYour
Autopilot to Wireless
The S100 wireless autopilot controller is
compatible with the following Raymarine/Autohelm SeaTalk Autopilots:
- ST1000
- ST2000
- ST3000
- ST4000
- ST5000
- SmartPilot ST6001
- SmartPilot ST7001
- SmartPilot ST8001
- SmartPilot S1000
|
|
|
Control Type |
5 Buttons |
|
Display lighting |
Yes, on/off
control |
|
Display size & type |
9 x 35mm LCD |
|
Humidity |
Up to 95% |
|
Maximum character size |
8mm |
|
Mounting methods |
Cradle,
handheld, laynard, belt clip |
|
Operating temperature range |
14° to 158° F
(-10° to 70° C) |
|
Overall Dimensions (L x W x D) |
3.94" x 2.36"
x 1.38" (100 x 60 x 35mm) |
|
Power |
2 AAA alkaline
batteries |
|
Product weight |
2.11 ounces
(.06 Kg) |
|
Storage temperature range |
14° to 158° F
(-10° to 70° C) |
|
Waterproofing standards |
IPX6 |
|
| Base Station
Specifications |
|
|
|
Absolute voltage range (volts DC) |
10-16 volts |
|
Connections |
1
SeaTalk |
|
Humidity |
Up
to 95% |
|
Interfaces |
Wireless SeaTalk Interface. NMEA 0183 interface via SeaTalk
conversion. |
|
Mounting methods |
Surface |
|
Nominal Voltage (volts DC) |
12
volta |
|
Operating temperature range |
14° to 158° F (-10° to 70° C) |
|
Overall Dimensions (L x W x D) |
4.61" x 2.6" x 1.42" (117 x 66 x 36mm) |
|
Product weight |
3.52 ounces (0.1 Kg) |
|
RF transmitter and receiver type |
IEEE 801.15.4 |
|
Storage temperature range |
14° to 158° F (-10° to 70° C) |
|
User Calibration |
Pre-registered |
|
Waterproofing standards |
Drip resistant |
|
|
