Raymarine

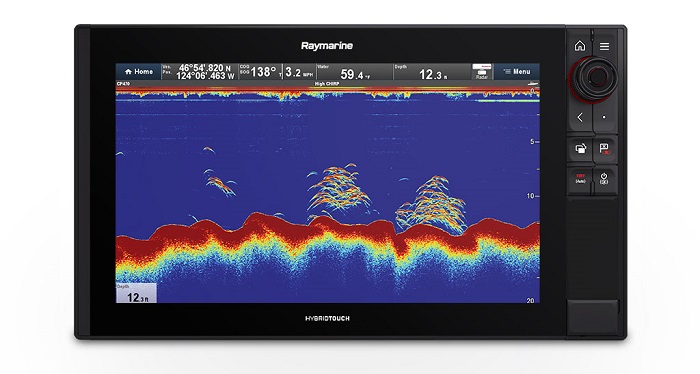

AXIOM Pro 16S 16" Multifunction Display with CHIRP Sonar and Navionics
NAV+ North America Chart
Model: E70483-00-NAG
High Performance Multifunction Navigation Display
Axiom Pro is engineered for captains that want it
all. Available with RealVision 3D, 1kw CHIRP sonar, and Raymarine HybridTouch
control, Axiom Pro is the new standard for “all-in-one” multifunction devices.
And with a blazing fast quad core processor, a super bright high-definition IPS
display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive
navigation experience. Axiom Pro is easy to expand into an advanced navigation
network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution
autopilot, FLIR thermal night vision technology, and more.
- BLAZING FAST
Quad core processor delivers instantaneous response and the ability to run
multiple apps simultaneously without any slowdowns.
- BOLD AND BRIGHT
Optical bonding technology and IPS display panels give you stunning Colour,
clarity, and contrast in all lighting conditions. Axiom Pro looks great even
through polarized sunglasses.
- HYBRIDTOUCH™
Control Axiom Pro from its multi-touch screen, its buttons and rotary knob,
or any combination of both. This choice is yours.
- CUSTOM KEY
Get instant access to your favourite function with user-programmable Custom
Key.
- LIGHTHOUSE 3 OS
Fast, fluid and easy to learn. The LightHouse 3 interface is uncluttered and
easy to personalize for your style of boating.
- BUILT-IN SONAR MODELS
Select from Pro S or Pro RVX sonar for cruising, sailing, coastal, or
offshore sonar needs.
LightHouse™ 3 - The Intuitive
and Powerful OS Behind AXIOM Pro
- HOME SCREEN
The LightHouse™ 3 home screen offers bold and simple app icons. Customize
the home screen to display the apps you use the most.
- YOUR DATA
Swipe the side of the display to reveal the fully customizable Side Bar data
display. The Side Bar also appears automatically if a GOTO command is
initiated.
- LIVEVIEW MENU™ CONTROLS
Easily customize charts and see the navigation display change in real time
- SUPPORT FOR THE BEST CHARTS
AXIOM Pro supports Navionics, LightHouse Raster, and LightHouse Vector
Charts sourced from leading map makers, including NV Digital, Blue Latitude,
and more.
- USER PROFILES
User Profiles saves your personal homescreen and configuration preferences.
Intuitive Control
With Raymarine HybridTouch you can enjoy simple
touch screen interaction or take control of Axiom Pro from its keypad and
multi-function rotary control. The choice is yours.
Evolution Autopilot Control
Seamless integration with the smartest autopilot
on the water – Evolution from Raymarine. Engage or disengage the pilot, follow a
waypoint or route, or let the pilot handle the helm with an automated trolling
pattern and control it all right from Axiom Pro.
Mobile Apps
View and control your Axiom Pro MFD over Wi-Fi
using Raymarine’s free RayRemote app for Smartphones and RayControl app for
tablets. Apps are available for both iOS and Android devices.
Marine Audio
Integrate Axiom Pro with multi-source, multi-zone
marine audio from Rockford Fosgate. Change sources, select tracks, control
zones, and much more right from your MFD.
Superior Sonar - Simply Superior RealVison™ 3D Sonar
- REALVISION 3D
Easily identify structure and locate fish with the life-like clarity of
RealVision 3D sonar.
- SCROLL BACK
Rewind, pause and playback recorded DownVision™ SideVision™ and RealVision
3D sonar history to take a closer look fish and structure, and easily plot
waypoints.
- GPS TRAILS
RealVision 3D combines with precision GPS to construct the most accurate 3D
model of the underwater world, in real-time.
- HISTORICAL SENSITIVITY SETTINGS
Adjustments to sonar gain, sensitivity and filtering are also applied to
recorded sonar history, enabling you to reveal previously concealed fish and
structure.
- OFFSHORE RATED 1KW CHIRP SONAR
Add a compatible o shore transducer and experience the stunning definition
and clarity of dual-channel CHIRP sonar. No gimmicks or games, this a true
1kW CHIRP sonar – no compromise performance. Target bait, fish, thermo
clines and more at depths to 5,000 feet.
- LOW MEDIUM OR HIGH CHIRP
Axiom Pro 1kW sonar offers a wide spectrum of CHIRP sonar bands for deep,
mid-range and shallow water fishing.
- GO DEEPER
Axiom Pro is compatible with the Raymarine CP470 and CP570 Professional
CHIRP sonars. Enjoy powerful sonar output up to 2 kilowatts and dual,
independent transceivers on CP570.
Enhanced Awareness - Stay Safe with FLIR Thermal and
Radar
- THERMAL CAMERAS
Combine Axiom Pro with the FLIR M132 or M232 thermal camera and enjoy Clear
Cruise™ IR Analytics. Axiom Pro will automatically alert you to obstacles in
your path.
- VIDEO MONITORING
Works with above and below decks marine cameras from Raymarine and FLIR.
• Connect up to 8 HD video sources with IP video, and view up
to 4 cameras simultaneously
• Supports analogue composite video sources, including
thermal and underwater cameras
• Analogue inputs can be distributed across the network
• Supports Miracast wireless video streaming to smart TVs and
video monitors
- RADAR
Integrate seamlessly with Raymarine Quantum CHIRP or any other Raymarine
radar system for all-weather, night-or-day navigation capability.
• Quantum Solid State CHIRP radar delivers superior imaging
at long and short ranges. Wired or Wi-Fi connectivity.
• HD and Super HD radar. Ideal for coastal and offshore
anglers with features including bird mode and high speed scanning.
Specifications
| General |
| Display Size |
15.6" IPS Optically Bonded LCD |
| Display Resolution |
1920 x 1080 FHD |
| Display Type |
Multitouch |
| Brightness |
1,200 nits |
| Viewing Angle |
Degrees: 88 / 88 / 88 / 88 (Top / Bottom
/ Left / Right) |
| Physical |
| Dimensions |
17.8" x 10.2" x2.72" (452 x 258 x 69 mm) |
| Weight |
6.25 lbs (2.84 kg) |
| Mounting |
Top, Front, and optional RAM ball mount
adapter |
| Waterproof Rating |
IPX6 / IPX7 |
| Operating Temp. |
-13deg F to 131deg F (-25deg C to +55deg
C) |
| Storage Temp. |
-22deg F to 158deg F (-30deg C to +70deg
C) |
| Power |
| Voltage |
12V and 24V DC (8 V to 32 DC) |
| Power Consumption (full
brightness) |
~45W |
| Sensors & Peripherals |
| GNSS/GPS |
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou
- 10Hz 72 Channel | External Accessory: GA150 (A80288) |
| Sonar Type - Built In |
Pro S model - High CHIRP*
Pro RVX model - RealVision 3D + 1kW Sonar |
| Sonar Connections |
S variant*= 25pin connector used only
with CPT-S transducers
RVX variant = 25pin RealVision™ type connector + 11 pin 1kW type
connector
*Pro S can only be used with CPT-S transducers that also connect
directly to CP470 sonar module. Requires A80490 adaptor cable.
External Sonar - RayNet |
| Sonar Depth |
CHIRP Sonar = 900 feet (274 m)
DownVision™ = 600 feet (183 m) | SideVision™ = 300 feet (91 m) |
RealVision™ 3D = 300 feet (91 m) 1kW = 5,000 feet (1,500 m) |
| External Sonar |
Yes - CP100, CP200, CP370, CP470, CP570
via RayNet |
| Radar |
Yes - Quantum, Digital, HD Color and
Super HD Color Radars |
| AIS |
Yes - N2K compatible |
| Autopilot Control |
Yes - Evolution Autopilot |
| Thermal Night Vision |
Yes - IP or Analogue |
| Video/Camera |
1 x Analogue input (BNC) Up to 10 IP
Cameras |
| Weather |
GRIB View - Free GRIB viewer and Theyr
Ltd Subscription | SiriusXM - N. America Only
[Weather features available in future Lighthouse 3 software update] |
| Audio |
N2K / *Bluetooth / *SiriusXM Audio
[*Available in future Lighthouse 3 software update] |
| Digital Switching |
Yes - Empirbus & C-Zone compatible
[C-Zone integration available in future Lighthouse 3 software update] |
| Remote Control |
RMK-10 (A80438) & RCU-3 (E62351) |
| Networking |
| Ethernet |
2 x 10/100/1000 Mbits/ Network (RayNet) |
| NMEA0183 |
1 Transmit / 2 Receive |
| NMEA2000 |
1 x NMEA2000 port (DeviceNet microC) |
| SeaTalkNG |
Requires DEVICENET FEMALE (F) ADAPTOR
CABLE (A06075 1m adaptor included in box) |
| USB |
1 x USB microAB (rear - charging,
external storage device or RCR-SD/USB Accessory (A80440) |
| Wi-Fi |
WiFi - 802.11 a / b / g / n |
| Bluetooth |
Bluetooth 4.0 + Low Energy + Power Class
1.5 [Available in future Lighthouse 3 software update] |
| Navigation |
| Cartography |
Lighthouse, Navionics, *C-MAP Essentials
& *C-MAP 4D MAX+
[*C-MAP chart compatibility available in future Lighthouse 3 software
update] |
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) |
10,000 wpts / 200 wpt groups / 150 rts -
250 wpt max / 16 tracks - 10,000 max trk pts |
| Memory |
| Internal |
16GB Solid State |
| External |
2 x microSD slots (front) - microSDHC
max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format
(microSD native format of exFAT must be reformatted to NTFS or FAT32) |
| Other |
| Languages |
24 |
| Conformances |
NMEA 2000 certification | Europe:
1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC
47CFR part 15 | Industry Canada RSS210 |
What's In the Box
- MFD Display (E70481 or E70371)
- RayNet (F) to Raynet (F) Cable – 2M (A62361)
- Micro-C DeviceNet (F) to STNG (F) Cable - 1M
(A06075)
- Suncover (A80534)
- Panel Seal Gasket
- Power / Video / NMEA0183 Cable - Straight,
1.5M (R62379)
- Mounting Fixings
- Bezel Pieces and Home / Menu Button
- Quick Start Guide
- Warranty Card
- Raymarine window decal
|
