  Raymarine ACU-400 Autopilot Corepack
Click to enlarge

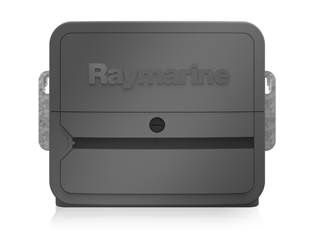

Raymarine ACU-400 Autopilot Corepack

Item #: RAYE70100



Quantity:

Minimum advertised price:

$1,749.99



Free Shipping Available!

Add to Cart =>

Usually ships the next business day.
No restocking fees on return.

Click to verify BBB accreditation and to see a BBB report.

Details:

For Type 2 and 3 Raymarine hydraulic, linear, and rotary mechanical drives .

The rugged Raymarine ACU-400 (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.



Drive Current Output

Maximum continuous

30 A at supply voltage

Drive Clutch Output
  • Up to 4 A continuous at 12 V on 12 V systems,
  • Up to 4 A continuous at 24 V on 24 V systems,
  • Up to 4 A continuous at 12 V on 24 V systems

Connections
  • Rudder reference sensor
  • Sleep switch
  • Power
  • Drive motor
  • Drive clutch
  • Ground
  • Digital Input / Output (DIO)

Nominal supply voltage

12 V or 24 V

Operating voltage range

10.8 V to 31.2 V dc

Power consumption (standby) - main power supply

300 mA (12/24 V)

Power consumption (standby) - SeaTalkngpower supply

20 mA (12V)

SeaTalkngLEN

(Load Equivalency Number)

1

SeaTalkngPower out

3 A at 12 V (fuse protected at 3 A)

Data connections

SeaTalkng

Installation environment

Operating temperature: -20?C to +55?C (-4?F to +131?F)

Storage temperature: -30?C to +70?C (-22?F to +158?F)

Relative humidity: max 93%

Waterproof rating

Drip resistant

Dimensions

(W x H x D)

285 mm x 211.5 mm x 64.5 mm

(11.2 in x 8.3 in x 2.5 in)

Weight

2.2kg (4.84 lbs)

Conformance

Europe: 2004/108/EC

Australia and New Zealand: C-Tick, Compliance Level 2
