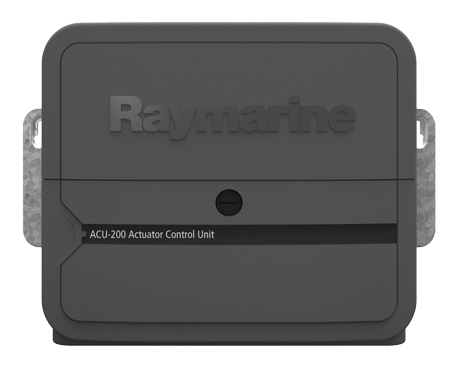

For use with Type 1 Raymarine hydraulic, linear and rotary mechanical drives The rugged Raymarine ACU-200 (Actuator Control Unit) delivers reliable
autopilot drive power and also provides power to the SeaTalkng bus.
| |
|
Drive Current Output |
Maximum continuous 15 A at supply voltage
|
|
Drive Clutch Output |
Up to 2.0 A continuous, selectable between 12 /24 V
|
|
Connections |
-
Rudder reference sensor
-
Sleep switch
-
Power
-
Drive motor
-
Drive clutch
-
Ground
|
|
Nominal supply voltage |
12 V or 24 V |
|
Operating voltage range |
10.8 V to 31.2 V dc |
|
Power consumption (standby) - main power supply |
300 mA (12/24 V) |
|
Power consumption (standby) - SeaTalkngpower
supply |
20 mA (12V) |
|
SeaTalkngLEN
(Load Equivalency Number) |
1 |
|
SeaTalkngPower
out |
3 A at 12 V (fuse protected at 3 A) |
|
Data connections |
SeaTalkng |
|
Installation environment |
Operating temperature: -20ºC to +55ºC (-4ºF to +131ºF)
Storage temperature: -30ºC to +70ºC (-22ºF to +158ºF)
Relative humidity: max 93% |
|
Waterproof rating |
Drip resistant |
|
Dimensions
(W x H x D) |
285 mm x 211.5 mm x 64.5 mm
(11.2 in x 8.3 in x 2.5 in) |
|
Weight |
2.2kg (4.84 lbs) |
|
Conformance |
Europe: 2004/108/EC
Australia and New Zealand: C-Tick, Compliance Level 2 |
|
|
