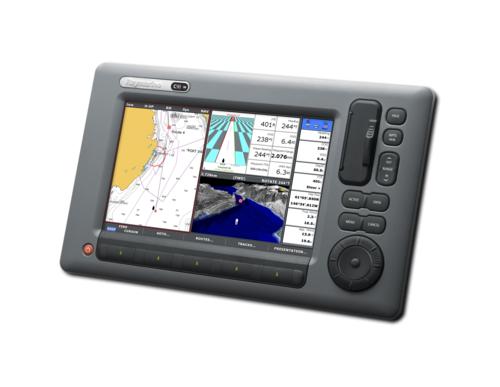

Raymarine C90W Multifunction Display with Preloaded Charts


Raymarine C90W Multifunction Display with Preloaded Charts
Click to enlarge


Item #: RAYE62111
Availability: Usually ships the next business day.
Choose Charts:
Minimum advertised price: $2,299.00
Click for your price =>


Trade Show Special Purchase!! On Sale through November 23rd!

Overview

The all new C-Series Widescreen redefines multifunction navigation with larger, brilliant displays, increased performance, expanded networking and video integration. These high resolution displays give captains a commanding view of multiple sources of information without compromising readability. Choose full screen navigation or choose multiple widescreen window combinations of chart, radar, fishfinder, weather and video – C90W gives you the flexibility to create the ideal screen configuration for every navigation scenario.

The 9” C90W features a high resolution 800 x 480 pixel (WVGA) widescreen display. The C90W is sunlight viewable and utilizes optical bonding technology for improved contrast, vibrant colors and a wide viewing angle. Display and menu navigation is also simplified with the all new UniControl™ pad.

C90W is ready to navigate with an internal high sensitivity GPS sensor. C-Series Widescreen displays are also pre-loaded with ready-to-navigate Navionics charts. Navigate with high quality pre-loaded Navionics charts or step up to 3D or Satellite photo charts using optional Navionics Platinum charts on CompactFlash. An on board graphics coprocessor provides quick chart screen redraws and stunning 3D graphics.

Building your C-Series Widescreen Network is easier than ever with SeaTalkhs. Build a single widescreen display or create a dual display C-Series Widescreen network using SeaTakhs to share radar, chartplotting, fishfinder, weather and navigation functions between two C-Series Widescreen displays. The C90W also supports SeaTalk and SeaTalkng protocols for seamless integration with a Raymarine external GPS sensor, LifeTag, SeaTalk instruments and SeaTalk autopilots. NMEA0183 and NMEA2000 support is also standard on the C90W providing easy integration with 3rd party electronics and engine monitoring.

Using SeaTalkng, C-Series Widescreen and SmartPilot X-Series autopilots go beyond conventional chartplotter-autopilot communication. C-Series Widescreen displays can actually control autopilot functions from the chartplotter interface. An autopilot dialog enables the captain to engage and disengage the autopilot directly from the C-Series display offering added convenience when using Raymarine’s SmartPilot X-Series for waypoint and route navigation.

Each C-Series Widescreen display also feature a video input for on-board cameras. Raymarine Marine Cameras are plug-and-play and offer outstanding video quality and durability in the marine environment.

The Raymarine C90W kit includes an owners manual, quick reference guide, suncover, flush mounting kit, and a Power/data/video cable.

C90W Features

  • Command view of multiple navigation sources on single widescreen display
  • Simply connect the appropriate sensor to transform the C-Series Widescreen display into a full function chartplotter, digital fishfinder, weather, radar or on board video system.
  • Sunlight Viewable display with Optical Bonding technology for improved color and contrast in all lighting conditions
  • Super high WVGA resolution - 800 x 480 pixels
  • Intuitive UniControl™ pad simplifies display and menu navigation

SeaTalkhs Networking

  • Super fast 100 Megabit networking
  • Dual display networking - Share chartplotter, fishfinder, radar, weather and more across two C-Series Widescreen displays

Chartplotter

  • Preloaded with Navionics ready-to-navigate cartography
  • Internal high sensitivity GPS sensor
  • 3D and Satellite photo maps using optional Navionics Platinum Charts

Digital Fishfinder

  • Connect to DSM30 or DSM300 using SeaTalkhs networking.
  • Patented HD Digital sonar technology for precise targeting of fish and bottom structure.
  • Four fishfinder presets for one touch access to favorite fishfinder view

Radar

  • Compatible with SeaTalkhs digital radomes
  • HD Digital and Super HD Digital open array compatibility
  • Auto GST technology to provide hands off operation
  • Dual Range radar when used with HD or Super HD Digital Arrays

SIRIUS Weather & Audio

  • SIRIUS Satellite weather and radio functionality with optional SR100 receiver
  • View up to the minute animated weather radar, forecasts, storm warnings and more delivered instantly via satellite.
  • Graphical Nowrad radar, sea surface temps, storm tracks, and more.
  • SIRIUS Satellite Radio functionality right on your C-Series Widescreen display. Set reminders for favorite songs and artists on over 100 SIRIUS Satellite Radio channels.

Video Integration

  • Display remote video sources from CCTV cameras, entertainment systems, and more.
  • Plug and play connectivity with Raymarine CAM100 or CAM50 marine cameras

Instrument Integration

  • Network with SeaTalk, SeaTalk2, SeaTalkng, SeaTalkhs, NMEA 0183 or NMEA 2000 instruments.
  • Display data from NMEA 2000 compatible engine systems.

Autopilot Integration

  • Activate and control Raymarine Smartpilot X-Series Autopilots directly from the chartplotter interface
C90W Specifications
Name Value Notes
AIS
AIS Suppport Support for class B AIS Supports silent mode
Target Symbols Sleeping, activated, selected, dangerous and lost
Target Information AIS vectors, buddy tracking, safety critical data and full AIS data.
Collision Avoidance Safe zones and safety messages
Alarms Local alarm messages, lost targets
Chartplotter
Cartography Embedded Navionics Cartographys
  Compatible with Navionics Charts on CompactFlash cards
Chart Scaling 1/32nm (if cartographic detail is available) to 4000nm
Waypoints 3000 waypoints entered via cursor, lat/lon, range and bearing from present position or at boat’s position. 16 character name can be assigned. Waypoint symbols and groups. Additional storage available on CompactFlash cards.
Waypoint Transfer Waypoints database via NMEA and CompactFlash cards. Software also available to convert waypoints to Excel file.
Man Overboard (MOB Mode) Mark placed with course line; readout shows range, bearing, lat/lon of MOB and time elapsed since MOB.
Presentation Modes Head up, Course up or North up (selectable True or Mag-netic) Relative, Autorange or True Motion Screen offset Radar or 3D synchronization
Routes A route plan may contain up to 50 waypoints. Up to 150 routes can be stored in the units internal memory. Additional storage available on CompactFlash cards. SmartRoute to create a route from track history.
Track History 15 tracks with up to 3000 points in each can be stored in the units internal memory. Track optimization reduces number of points used or user selectable time or distance interval. Additional storage available on CompactFlash cards.
Radar/Chart Overlay Radar image can be overlaid on all screen charts
Radar/Chart Synchronization To synchronize radar range and chart scale
3D/Chart Synchronization To synchronize 3D and 2D chart scales and orientation
Aerial Overlay Overlay of aerial photography on the chart
AIS Overlay Switch AIS symbols on/off. Display heading/speed vectors and ROT. View detailed AIS data, safety critical target data, ALR and SRM messages. Set up a safe zone.
Navigation Information Own boats position in lat/lon, XTE, TTG and SOG/COG selectable. Bearing and distance to waypoint. Bearing and distance to cursor and ETA.
3D Presentation Modes Active motion mode, planning mode, Adjust rotation and pitch, port, starboard, forward and aft view, multiple views, Vessel offset
3D Display Declutter, Transducer cone, Depth scale, Waypoint name, Adjust exaggeration, 3D view locator
Fishfinder
Transducer Transom-mount, in-hull or thru-hull options
Digital Sounder Modules Compatible with the DSM30 and DSM300
Receiver Type Patented Raymarine HD Digital receiver technology
Power Output Dependant on Digital Sounder Module
Frequency Dependant on Digital Sounder Module
Alarms Fish Alarm, Fish Depth Alarm, Shallow and Deep Fish Limit
A-Scope Display Displays Sonar Returns in real time
Bottom Coverage Display Shows the diameter of the transducer beam where it meets the bottom.
Bottom Lock Displays echoes directly above the bottom
Range Markers Easily see how far the boat is from a target on the echo sounder screen
Target Detection Sonar fish echo with target depth readout
Zoom 2,3,4x and user programmable Zoom Scales
General
Data Display Capabilities GPS, Chartplotter, Fishfinder, Radar, External Video, CDI(Course Deviation Indicator), and customizable Data Bar display
Dimensions C90W : 12.7" x 8.2" x 4.4” (321 x 207 x 112)
Display (LCD) Size C90W : 9"
Display Colors 16.7M
Display Resolution C90W: 800 x 480 pixels (wide VGA)
Display Type Sunlight viewable color TFT LCD
Mounting Methods Console mounting hardware included. Trunnion mounting kit sold separately
Operating and Non-Operating Temperature Limits 14°F to 122°F (-10°C to 50°C)
Power Consumption 32 Watts (typical)
Voltage Range 10.7–32 volts (12/24v nominal)
Waterproofing CFR46/IPX6 standards
Weight C90W: 8.5lbs (3.85kg)
Approvals CE - Conforms to FCC - Compliant with Essential requirements of 1995/5/EC, 1989/336/EC. CFR47 Parts 2 & 80
Humidity Limit up to 95% at 35°C non-condensing
Display Windows Chart, Radar, Fishfinder, CDI, Video, Data, Weather and Engine Monitor
Screen Functions Full, half and quarter screens available dependant on function. Also 3 window page with 2 x 1/4 page windows and 1 x 1/2 page window.
Illumination Screen and keypad: 0 to 100% in 64 steps Day/Night Mode
Languages English (US), English (UK), Italian, French, Spanish, German, Norwegian, Dutch, Swedish, Danish, Portuguese, Finnish, Icelandic, Chinese, Russian, Greek, Japanese, Korean
System Alarms Alarm Clock, Anchor, Arrival, Deep, Shallow and Fishing Depth, MOB, Offtrack, Temperature, Timer
Navigation Alarms Arrival Alarm, Offtrack XTE Alarm
GPS
GPS Type Internal High Sensitivity Receiver
Channels 12
Frequency 1.575GHz (L1)
Sensitivity -159dBm (tracking), -142dBm (acquisition)
SBAS Support WAAS / EGNOS Compatible
Horizontal Position Accuracy <=15 metres 95% typical (without SA), <= 5metres 95% with WAAS/EGNOS
Speed Accuracy <=0.3kts
Antenna Helical antenna for even sensitivity across all orientations
Instrument and Engine Data
Data Pages 5 pages available. Pre-defined (Navigation, Waypoint, Route, Fishing or Sailing) or user-configured
Data Available Vessel position, active waypoint, TTG, VMG - Waypoint, depth, COG, SOG, heading, speed, set/drift, trip, log, ground log, ground trip, rudder, local time and date, sea temperature, app wind, true wind, VMG wind, ground wind XTE, compass, locked heading, w
Engine Pages 5 pages available. Pre-defined (engine, engine and fuel, fuel resources, engine and resources, twin engines or triple engine support) or user-configured.
Engine Data Tacho, boost pressure, alternator, oil pressure, coolant temperature, engine hours, fuel level (tanks 1 & 2), fuel rate, total fuel, load
Interfaces
Network Configurations Single or dual display configurations
SeaTalkhs Network 2 ports
  Supports 8 devices Optional network switch required
NMEA interface 3 inputs (configurable baud rate)
  2 outputs
NMEA 0183 Input GLL, GGA, GLC, GTD, VTG, BWC, BWR, RMA, RMB, RMC, XTE, VHW, HDG, HDM, HDT, DBT, DPT, APB, VLW, MWV, WPL, RTE, DSC and ZDA. Selectable to 4800, 4800 Navtex, 9600 Navtex or 38,400 AIS
NMEA Output - User selectable APB, BWC, BWR, DBT, DPT, GGA, GLL, MTW, RMA, RMB, RMC, RSD, TTM, VLW, VHW, VTG, WPL, VHF/DSC and ZDA
Seatalk Interface 1 port
SeaTalk Input Depth,SOG,COG, Position, Waypoint Number, Range/ Bearing, TTG, Boat Speed, Time, XTE, Heading, Wind, Data, Log/Trip, Pilot Status, Temperature, MOB and Cursor Position
SeaTalk Output Cursor Data, Guard Zone and Navigational Data bridged from NMEA
SeaTalk2/NMEA2000 1 port Also supports SeaTalkng (Next Generation data bus) connectivity. Adapter cables required for SeaTalkng and NMEA2000
Video Input Composite Video (NTSC or PAL) Input (BNC connector)
NAVTEX
Alerts Incoming message (selectable categories)
Message List Sorting
Radar
Radar Support Support for all Digital, HD Digital & Super HD Digital Radars
Image Type Color Radar Support (HD & SHD Radars Only)
Range Scales (Range Rings) 1/8 (1/16) nm to 72 (12) nm dependant on scanner. Performance limited by scanner type and position.
Range Ring Accuracy Better than +/- 1.5% of the max. range scale in use, or 22m (72 ft.), whichever is the greatest.
Bearing Accuracy +/- 1°
Variable Range Markers 2 x VRM’s, readout nm, sm, km
Electronic Bearing Lines 2 x EBL’s, floating if required, resolution 1°
Bearing Scale 360° graduated at 10° intervals 2° small ticks 10° large ticks
Minimum Range 23m (25 yds)
Range Discrimination 23m (25 yds)
Presentation Modes Head up, Course up or North up (selectable True or Mag-netic) Relative or True Motion
Scanner Control Interference rejection, standby/transmit modes, pulse selection, Tune, Rain, FTC and Sea controls, with selection of manual or automatic control of gain, sea clutter and tune (Auto GST)
Compass Input NMEA 0183 (required for fast heading data, suitable for MARPA), or SeaTalk
Waypoint Display Create waypoints and target waypoint displayed with User control of symbols and groups
MARPA Manual acquisition of up to 25 targets (dependent upon scanner type), automatic tracking, dangerous target alarms, safe zone, target history, true or relative vectors, CPA graphics and indication of target speed/ course, bearing/ range, CPA and TCPA.
Guard Zone Alarm 2 guard zones, selectable sensitivity level, audible alarm
Automatic Tuning Auto control of gain, sea clutter and tune
Off Center Function In Relative Motion, 1/3 or 2/3
Wakes 10s, 30s, 1 min, 5 min & 10 min options
Target Expansion Operator selectable with 2 levels available
Timed TX Rotation periods: 10, 20 or 30 scans Repetition periods: 3, 5, 10 or 15 minutes
AIS Overlay Switch AIS symbols on/off. Display heading/speed vectors and ROT. View detailed AIS data, safety critical target data, ALR and SRM messages. Set up a safe zone.
Weather
Type SIRIUS Marine Weather
Weather Elements Storm cast, waves, Canadian radar, lightning, wind, sea surface temperature, observations stations, city weather, NOWRad, storm tracks, surface pressure
Animated Weather Graphics Weather forecast, weather radar history
Weather Reports Tropical statements, marine warnings, marine zone forecasts, marine watchbox
